SKU: AS85110-EU

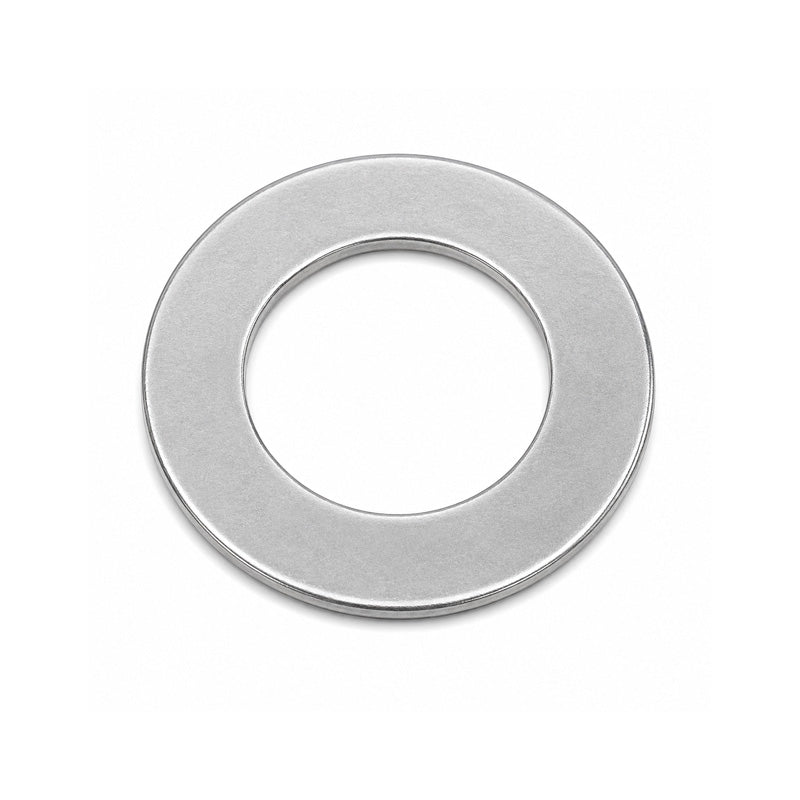

AS85110 Budget Thrust Washer Series AS 85x110x1mm
AS85110 Budget Thrust Washer Series AS 85x110x1mm
Regular price
$11.46
ex VAT
Regular price
Sale price
$11.46
ex VAT
In stock
Price Break
10+
$5.41
19+
$5.10
29+
$5.04
39+
$4.98
49+
$4.92
74+
$4.86
99+
$4.56
199+
$4.50
249+
$4.43
499+
$4.37
999+
$4.25
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 1mm
Technical
Technical
| d | 85mm |
|---|---|
| d1 | 110mm |
| D | 110mm |
| D1 | 87mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 160 g |
