SKU: AS7095-MB

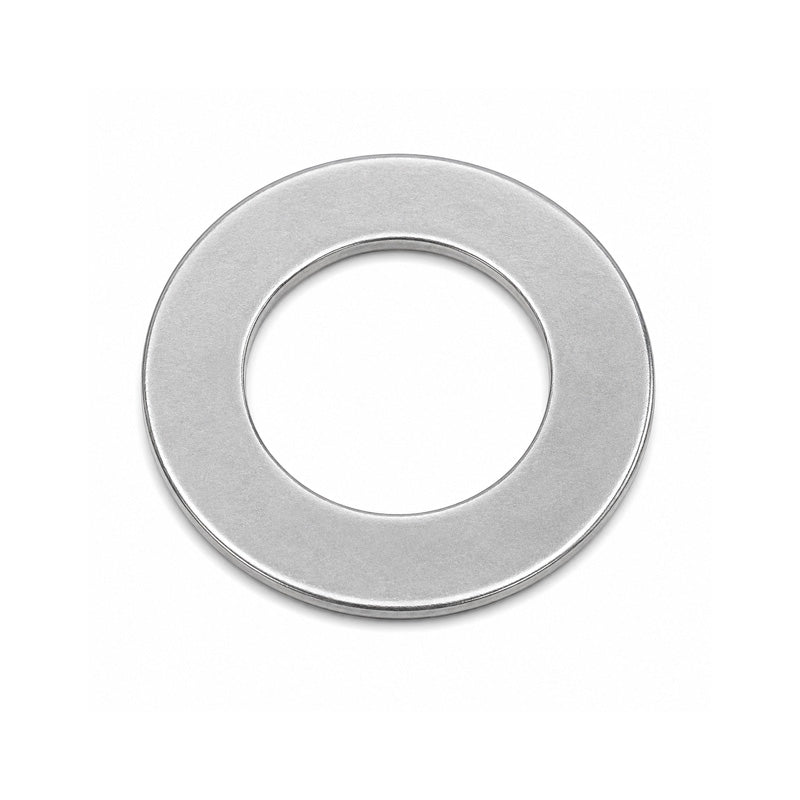

Major Brand AS7095 Thrust Washer Series AS 70x95x1mm
Major Brand AS7095 Thrust Washer Series AS 70x95x1mm
Regular price
$10.27
ex VAT
Regular price
Sale price
$10.27
ex VAT
In stock
Price Break
10+
$9.14
19+
$8.63
29+
$8.52
39+
$8.42
49+
$8.32
74+
$8.22
99+
$7.70
199+
$7.60
249+
$7.50
499+
$7.39
999+
$7.19
Couldn't load pickup availability
Description
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 95mm
- Width:
- 1mm
Technical
Technical
| d | 70mm |
|---|---|
| d1 | 95mm |
| D | 95mm |
| D1 | 72mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 125 g |
