SKU: AS160200-MB

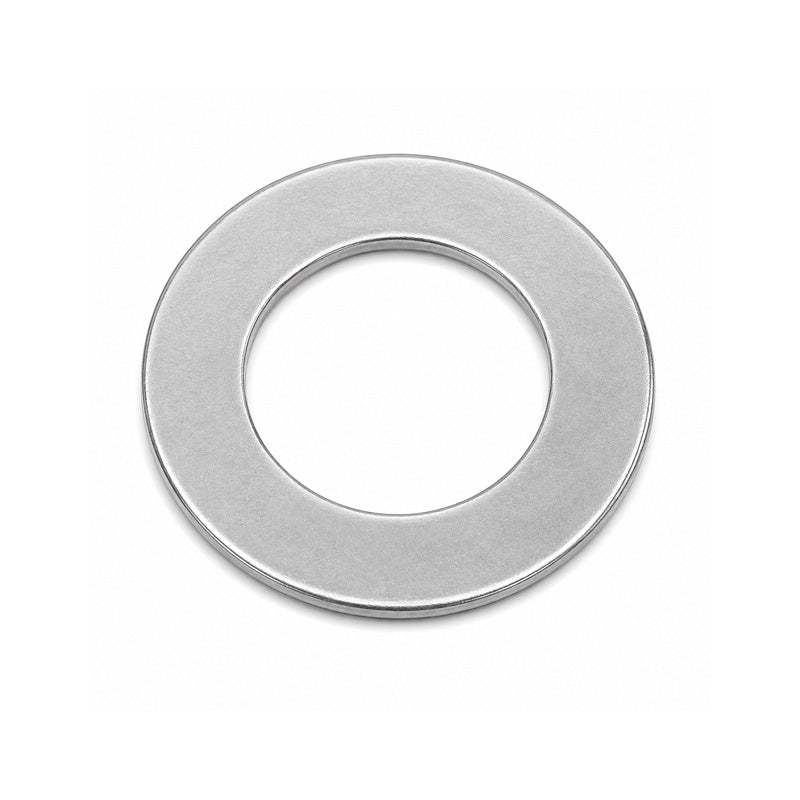

Major Brand AS160200 Thrust Washer Series AS 160x200x1mm
Major Brand AS160200 Thrust Washer Series AS 160x200x1mm
Regular price
$62.41
ex VAT
Regular price
Sale price
$62.41
ex VAT
In stock
Price Break
10+
$29.48
19+
$27.82
29+
$27.49
39+
$27.16
49+
$26.83
74+
$26.50
99+
$24.84
199+
$24.51
249+
$24.18
499+
$23.85
999+
$23.18
Description
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 200mm
- Width:
- 1mm
Technical
Technical
| d | 160mm |
|---|---|
| d1 | 198mm |
| D | 200mm |
| D1 | 162mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 840 g |
