SKU: A-ASFD204D1-NTN

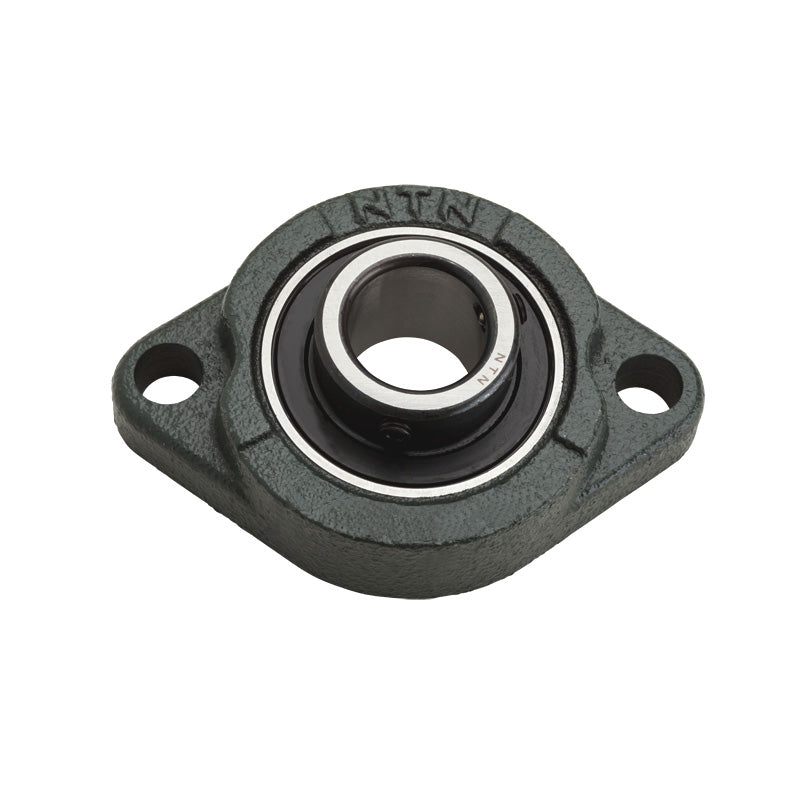

NTN A-ASFD204D1 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
NTN A-ASFD204D1 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
Regular price
$41.76
ex VAT
Regular price
Sale price
$41.76
ex VAT
In stock
Price Break
5+
$41.34
10+
$39.67
20+
$38.84
50+
$37.58
100+
$36.75
500+
$34.66
1000+
$29.23
Couldn't load pickup availability
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- ASFD
- Bolt Hole Centres:
- 71mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 90mm |
| J | 71mm |
| A<sub>2</sub> | 9.5mm |
| A | 17mm |
| N | 10mm |
| L | 67mm |
| A<sub>0</sub> | 27.5mm |
| B | 25mm |
| S | 7mm |
| Fixing bolt | M8 |
| Mass | 0.4 kg |
