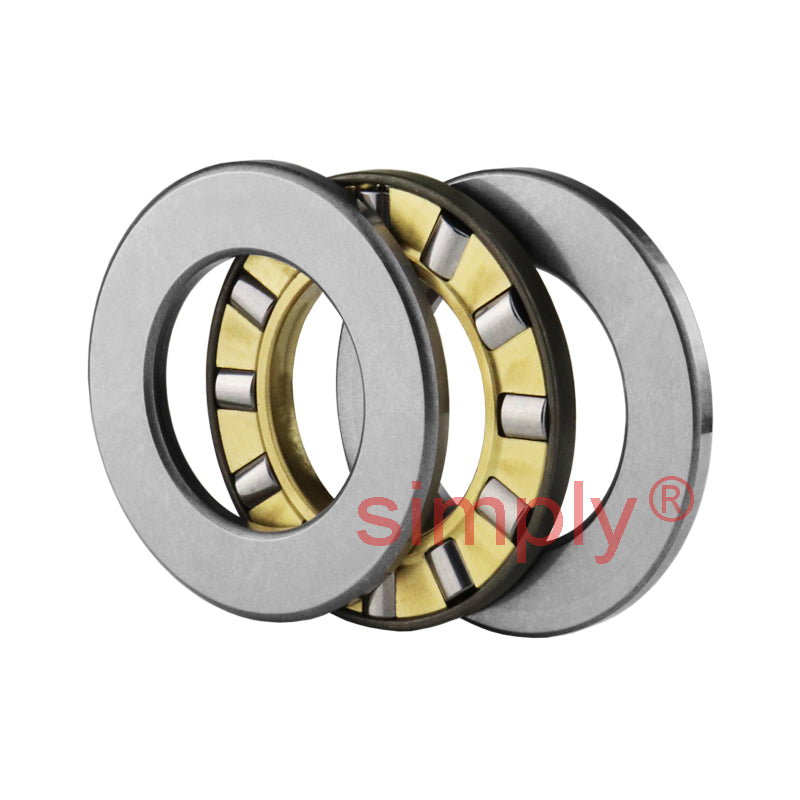

Major Brand 89424M Cylindrical Roller Thrust Bearing with Brass Cage 120x250x78mm
Major Brand 89424M Cylindrical Roller Thrust Bearing with Brass Cage 120x250x78mm
Regular price
$2,200.48
ex VAT
Regular price
Sale price
$2,200.48
ex VAT
In stock
Price Break
10+
$1,039.24
19+
$980.86
29+
$969.18
39+
$957.50
49+
$945.83
74+
$934.15
99+
$875.77
199+
$864.09
249+
$852.41
499+
$840.74
999+
$817.38
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 250mm
- Width:
- 78mm
Technical
Technical
| d | 120mm |
|---|---|
| D | 250mm |
| H | 78mm |
| Dynamic load C | 930 kN |
| Static load Co | 3900 kN |
| Fatigue load limit Pu | 355 kN |
| Min load factor A | 1.2 |
| Reference speed | 600 rpm |
| Limiting speed | 1200 rpm |
| Cage reference | K89424M |
| Weight | 19.5 kg |
