SKU: 81252M.EU

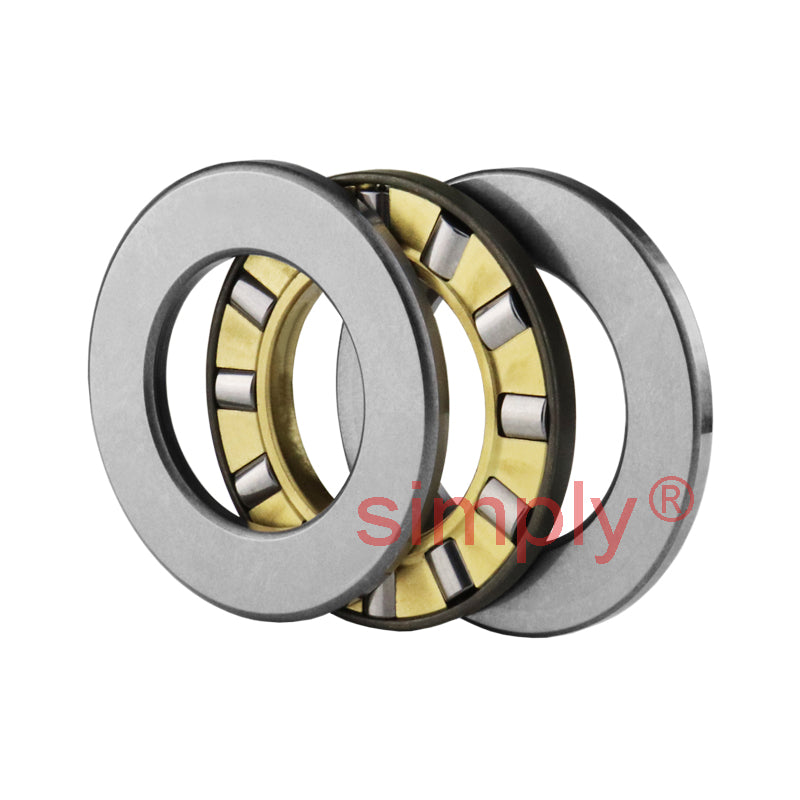

Premier Budget 81252M Cylindrical Roller Thrust Bearing with Brass Cage 260x360x79mm
Premier Budget 81252M Cylindrical Roller Thrust Bearing with Brass Cage 260x360x79mm
Regular price
$3,566.29
ex VAT
Regular price
Sale price
$3,566.29
ex VAT
Equivalent to: AZ26036079 K81252M 81252M
In stock
Price Break
10+
$1,684.29
19+
$1,589.66
29+
$1,570.74
39+
$1,551.81
49+
$1,532.89
74+
$1,513.97
99+
$1,419.34
199+
$1,400.42
249+
$1,381.49
499+
$1,362.57
999+
$1,324.72
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ26036079 K81252M 81252M
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 360mm
- Width:
- 79mm
Technical
Technical
| d | 260mm |
|---|---|
| D | 360mm |
| H | 79mm |
| Dynamic load C | 1140 kN |
| Static load Co | 5300 kN |
| Fatigue load limit Pu | 415 kN |
| Min load factor A | 2.2 |
| Reference speed | 380 rpm |
| Limiting speed | 750 rpm |
| Cage reference | K81252M |
| Weight | 24 kg |
