SKU: 81211.TN.MB

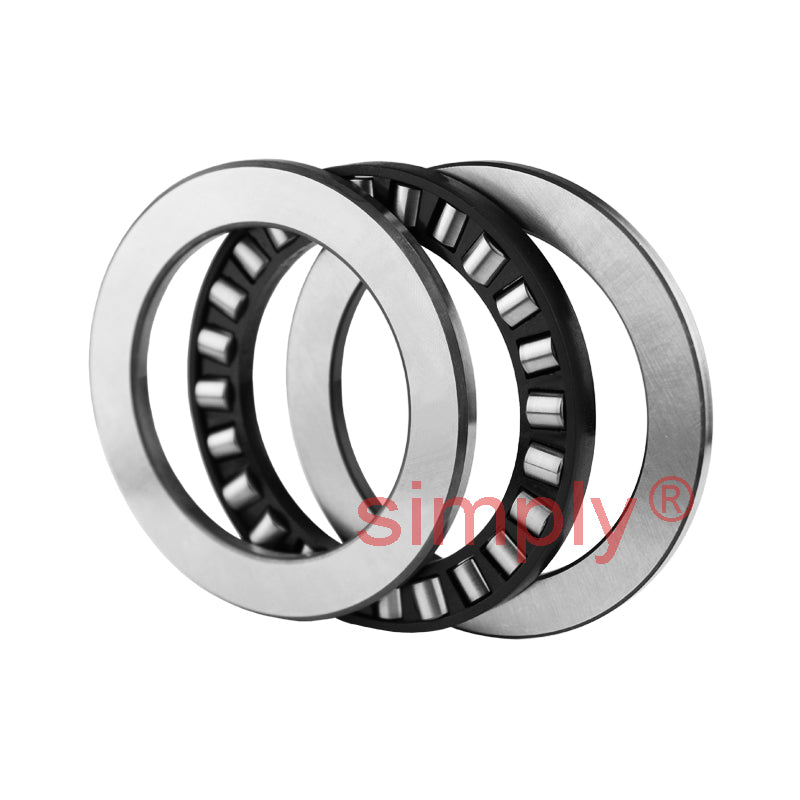

Major Brand 81211TN Cylindrical Roller Thrust Bearing with Nylon Cage 55x90x25mm
Major Brand 81211TN Cylindrical Roller Thrust Bearing with Nylon Cage 55x90x25mm
Regular price
$168.42
ex VAT
Regular price
Sale price
$168.42
ex VAT
Equivalent to: AZ559025
In stock
Price Break
10+
$79.54
19+
$75.07
29+
$74.18
39+
$73.28
49+
$72.39
74+
$71.49
99+
$67.03
199+
$66.13
249+
$65.24
499+
$64.35
999+
$62.56
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ559025
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 25mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| H | 25mm |
| Dynamic load C | 122 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 40 kN |
| Min load factor A | 0.012 |
| Reference speed | 1800 rpm |
| Limiting speed | 3600 rpm |
| Cage reference | K81211TN |
| Weight | 0.57 kg |
