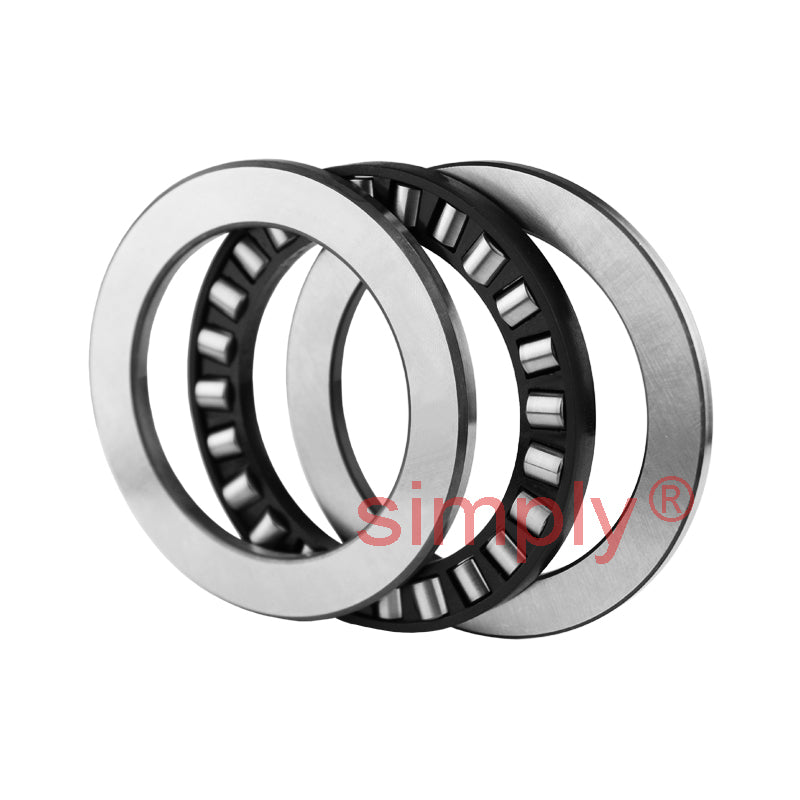

Major Brand 81120TN Cylindrical Roller Thrust Bearing with Nylon Cage 100x135x25mm
Major Brand 81120TN Cylindrical Roller Thrust Bearing with Nylon Cage 100x135x25mm
Regular price
$243.44
ex VAT
Regular price
Sale price
$243.44
ex VAT
Equivalent to: AZ10013525
In stock
Price Break
10+
$114.97
19+
$108.51
29+
$107.22
39+
$105.93
49+
$104.64
74+
$103.34
99+
$96.89
199+
$95.59
249+
$94.30
499+
$93.01
999+
$90.43
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ10013525
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 25mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| H | 25mm |
| Dynamic load C | 156 kN |
| Static load Co | 630 kN |
| Fatigue load limit Pu | 62 kN |
| Min load factor A | 0.027 |
| Reference speed | 1200 rpm |
| Limiting speed | 2400 rpm |
| Cage reference | K81120TN |
| Weight | 0.95 kg |
