SKU: 80H-1-NO12-MB
Branded 80H-1-NO12 ANSI / AS Half Link Simplex Chain Single Cranked Cottered Link 1 inch Pitch
Branded 80H-1-NO12 ANSI / AS Half Link Simplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
$13.94
ex VAT
Regular price
Sale price
$13.94
ex VAT
Equivalent to: 80H-1-OL
In stock
Price Break
10+
$12.41
19+
$11.71
29+
$11.57
39+
$11.43
49+
$11.29
74+
$11.15
99+
$10.46
199+
$10.32
249+
$10.18
499+
$10.04
999+
$9.76
Couldn't load pickup availability
Description
Description

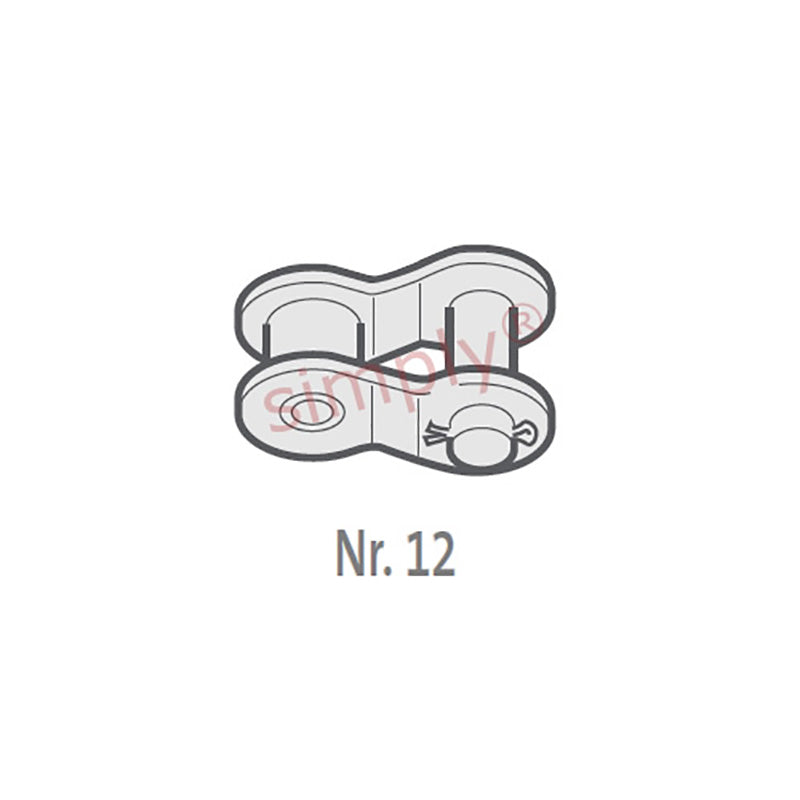

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 80H-1-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 32.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 55600 N |
| Weight | 0.02kg/m |
