Renold Blue Box 80-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 1 inch Pitch
Renold Blue Box 80-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 1 inch Pitch
Regular price
$148.40
ex VAT
Regular price
Sale price
$148.40
ex VAT
In stock
Price Break
10+
$132.08
19+
$124.66
29+
$123.17
39+
$121.69
49+
$120.20
74+
$118.72
99+
$111.30
199+
$109.82
249+
$108.33
499+
$106.85
999+
$103.88
Couldn't load pickup availability
Description
Description

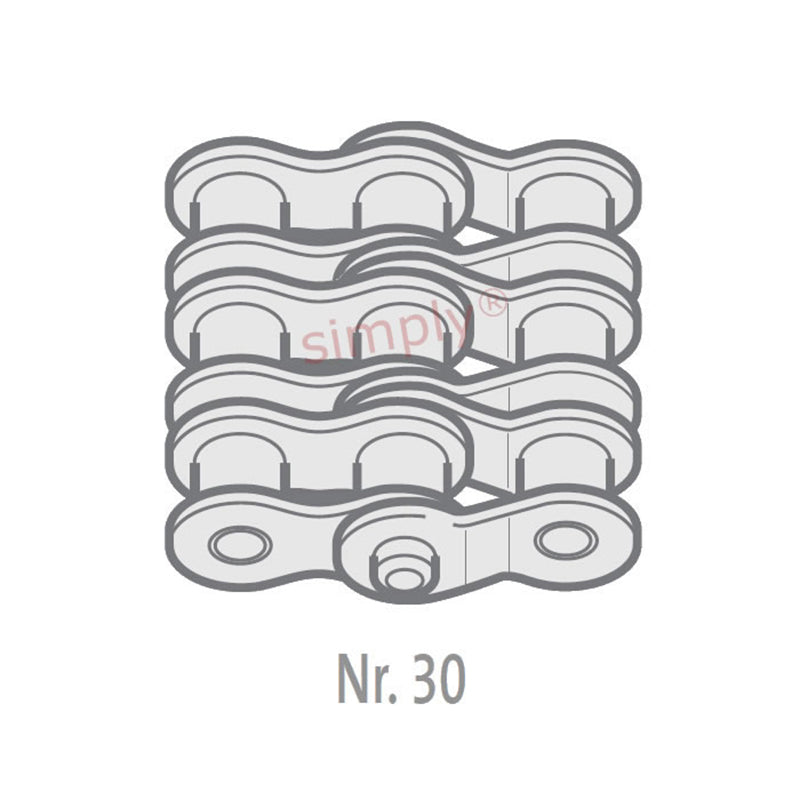

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.13mm |
| Plate Width Inner max (E) | 3.25mm |
| Plate Width Outer max (F) | 3.25mm |
| Pin Diameter max (G) | 7.94mm |
| Pin Length max (H2) | 91.2mm |
| Connecting Link Extension max (J) | 3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 0.06kg/m |
