SKU: 80-2-SD-NO12-RENOLD
Renold SD 80-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold SD 80-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
$97.63
ex VAT
Regular price
Sale price
$97.63
ex VAT
In stock
Price Break
10+
$86.89
19+
$82.01
29+
$81.03
39+
$80.06
49+
$79.08
74+
$78.10
99+
$73.22
199+
$72.25
249+
$71.27
499+
$70.29
999+
$68.34
Couldn't load pickup availability
Description
Description

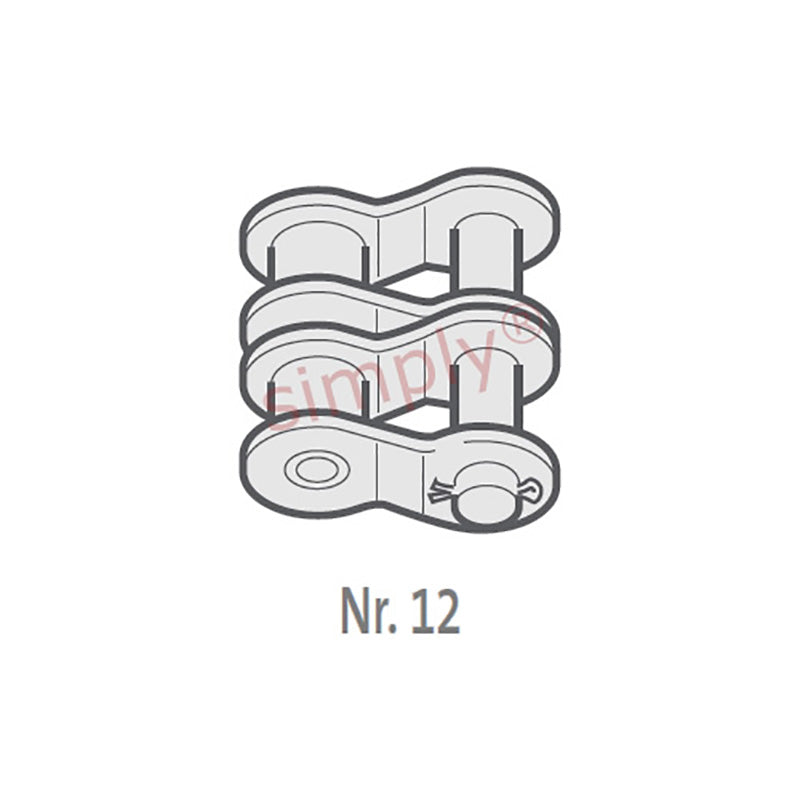

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Chain Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H2) | 61.9mm |
| Connecting Link Extension max (J) | 2.3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 111200 N |
| Weight | 0.04kg/m |
