SKU: 80-1-SD-NO11-RENOLD
Renold SD 80-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1 inch Pitch
Renold SD 80-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
$16.86
ex VAT
Regular price
Sale price
$16.86
ex VAT
In stock
Price Break
10+
$15.01
19+
$14.16
29+
$13.99
39+
$13.83
49+
$13.66
74+
$13.49
99+
$12.65
199+
$12.48
249+
$12.31
499+
$12.14
999+
$11.80
Couldn't load pickup availability
Description
Description

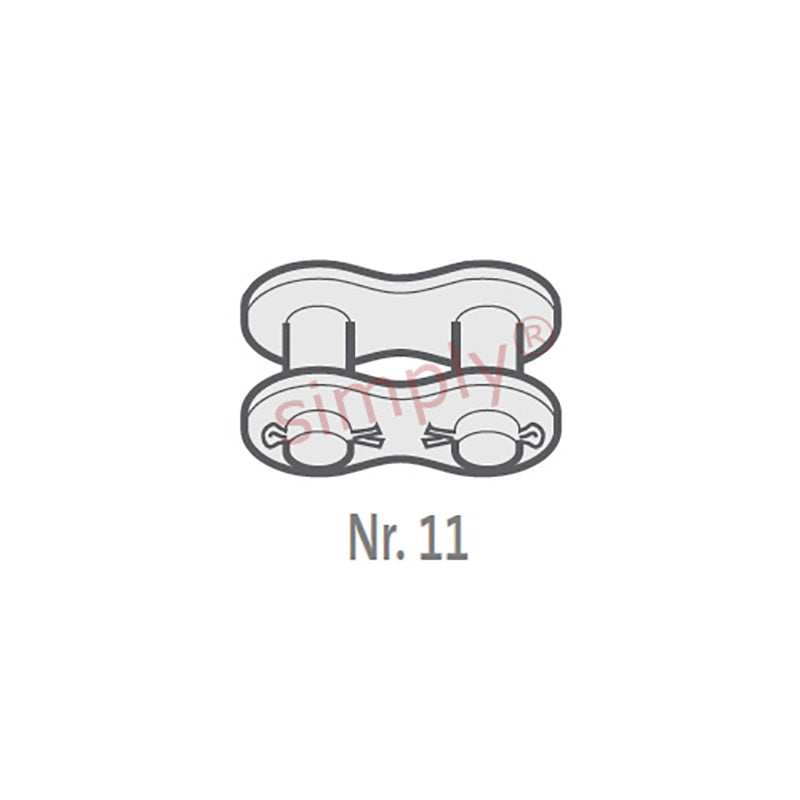

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 32.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 55600 N |
| Weight | 0.02kg/m |
