Branded 80-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1 inch Pitch
Branded 80-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1 inch Pitch
Regular price
$17.39
ex VAT
Regular price
Sale price
$17.39
ex VAT
Equivalent to: 80-1-DOL
In stock
Price Break
10+
$15.48
19+
$14.61
29+
$14.43
39+
$14.26
49+
$14.09
74+
$13.91
99+
$13.04
199+
$12.87
249+
$12.69
499+
$12.52
999+
$12.17
Couldn't load pickup availability
Description
Description

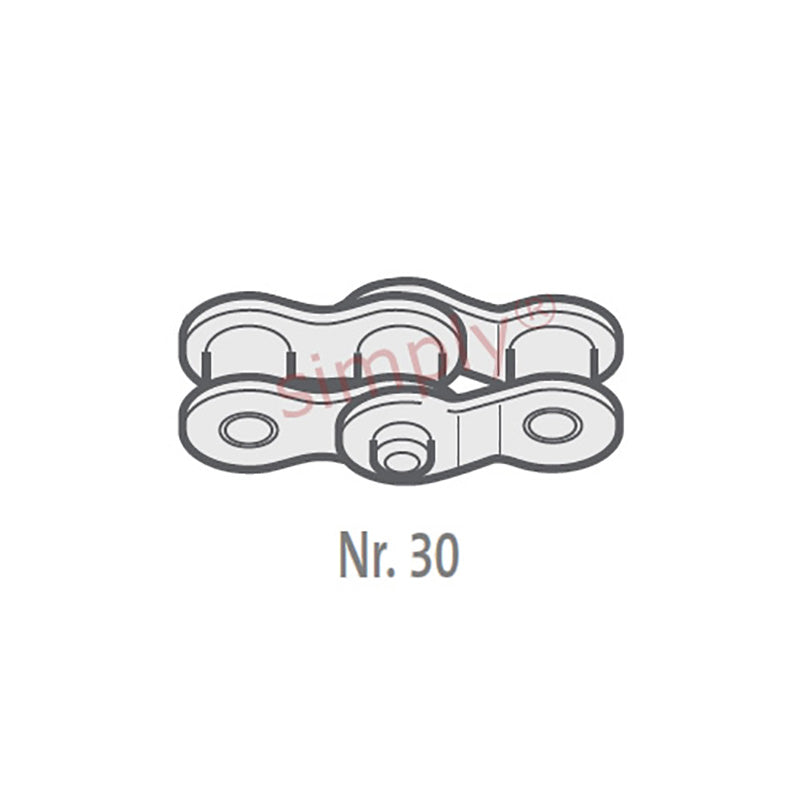

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 80-1-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 32.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 55600 N |
| Weight | 0.02kg/m |
