SKU: 7EHKS-5/8x13/16x3/4-NTN

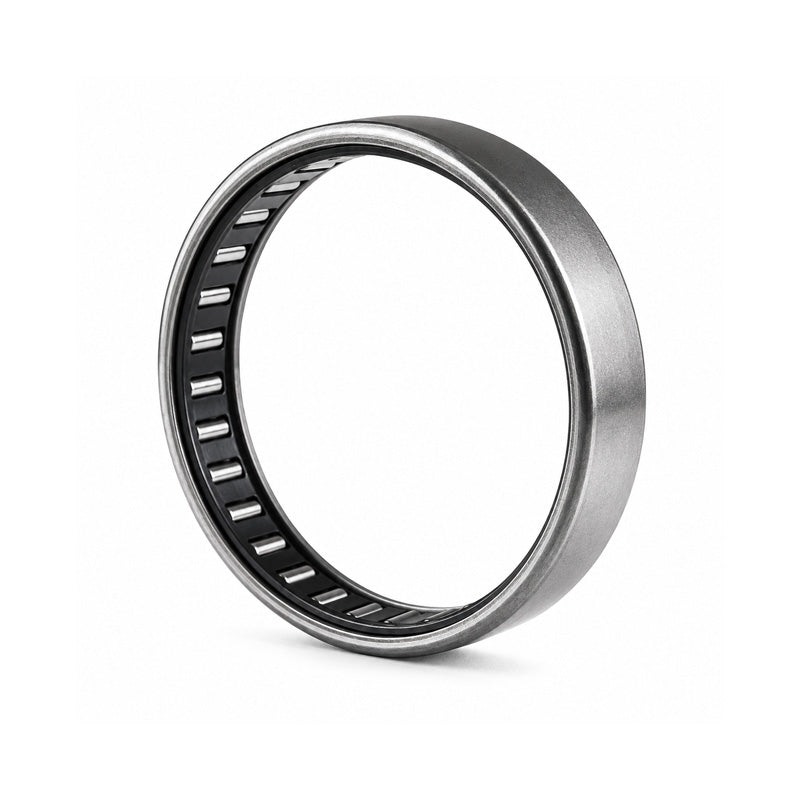

NTN 7EHKS Special Open Outer / Cage Needle Roller Bearing 5/8x13/16x3/4 inch
NTN 7EHKS Special Open Outer / Cage Needle Roller Bearing 5/8x13/16x3/4 inch
Regular price
$13.55
ex VAT
Regular price
Sale price
$13.55
ex VAT
Equivalent to: 7E-HKS15.8X20.6X#03
In stock
Price Break
10+
$6.40
19+
$6.04
29+
$5.97
39+
$5.90
49+
$5.82
74+
$5.75
99+
$5.39
199+
$5.32
249+
$5.25
499+
$5.18
999+
$5.03
Share this product
Description
Description
|
NTN EHKS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. This type has an opening in the outer race and a gap in the cage where there are no rollers for approx one quarter of the fill. |
Equivalent: 7E-HKS15.8X20.6X#03
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Bore | 5/8 inch |
|---|---|
| Outside Diameter | 13/16 inch |
| Width | 3/4 inch |
