SKU: 7338BCBM-SKF

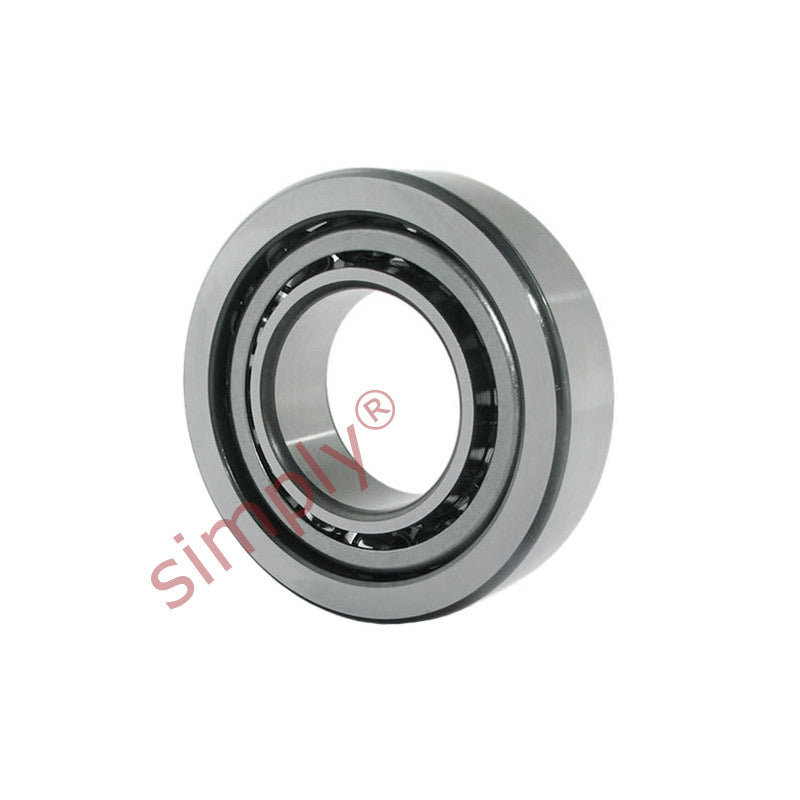

SKF 7338BCBM Single Row Angular Contact Ball Bearing 190x400x78mm
SKF 7338BCBM Single Row Angular Contact Ball Bearing 190x400x78mm
Regular price
$8,311.77
ex VAT
Regular price
Sale price
$8,311.77
ex VAT
Equivalent to: 7338BCBM
In stock
Price Break
10+
$7,397.48
19+
$6,981.89
29+
$6,898.77
39+
$6,815.65
49+
$6,732.53
74+
$6,649.42
99+
$6,233.83
199+
$6,150.71
249+
$6,067.59
499+
$5,984.47
999+
$5,818.24
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7338BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7338BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 400mm
- Width:
- 78mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 190mm |
|---|---|
| D | 400mm |
| B | 78mm |
| Dynamic load Cr | 442 kN |
| Static load Cor | 600 kN |
| Fatigue load limit Pu | 14.6 kN |
| Reference speed | 1900 rpm |
| Limit speed | 1900 rpm |
| Weight | 48.3 kg |
| d1 | 271.6mm |
| d2 | 231.8mm |
| D1 | 324.3mm |
| r1r2 min | 5mm |
| r3r4 min | 2mm |
| a | 164mm |
| da min | 210mm |
| Da max | 380mm |
| Db max | 389mm |
| ra max | 4mm |
| rb max | 2mm |
