SKU: 7326BM-SKF

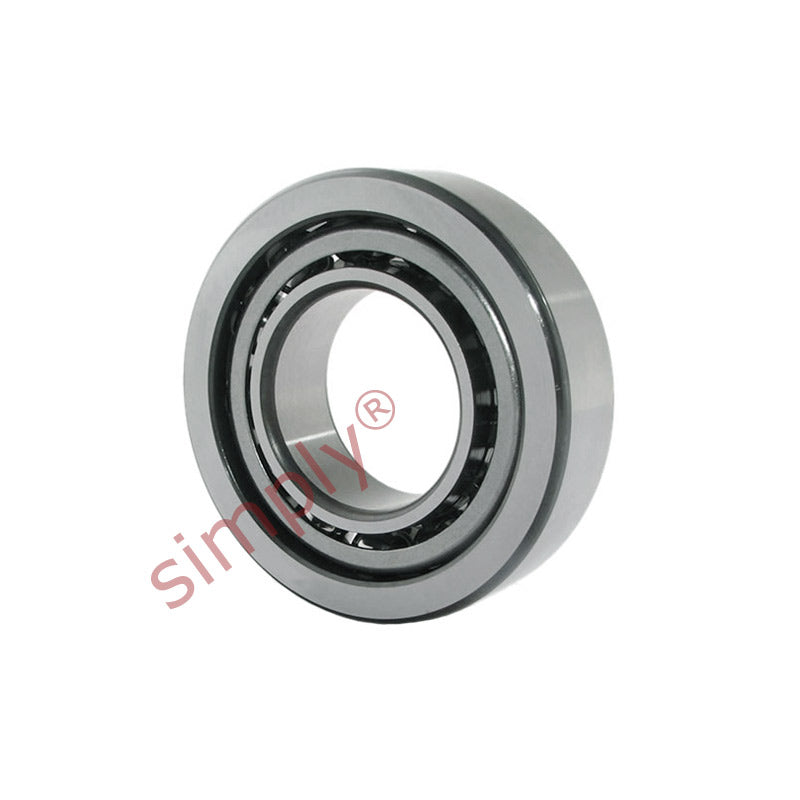

SKF 7326BM Single Row Angular Contact Ball Bearing 130x280x58mm
SKF 7326BM Single Row Angular Contact Ball Bearing 130x280x58mm
Regular price
$3,168.70
ex VAT
Regular price
Sale price
$3,168.70
ex VAT
Equivalent to: 7326BM
In stock
Price Break
10+
$2,820.14
19+
$2,661.71
29+
$2,630.02
39+
$2,598.33
49+
$2,566.65
74+
$2,534.96
99+
$2,376.53
199+
$2,344.84
249+
$2,313.15
499+
$2,281.46
999+
$2,218.09
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7326BM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7326BM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 280mm |
| B | 58mm |
| Dynamic load Cr | 276 kN |
| Static load Cor | 305 kN |
| Fatigue load limit Pu | 9 kN |
| Reference speed | 2800 rpm |
| Limit speed | 2800 rpm |
| Weight | 17.1 kg |
| d1 | 189.9mm |
| d2 | 161.4mm |
| D1 | 227.5mm |
| r1r2 min | 4mm |
| r3r4 min | 1.5mm |
| a | 115mm |
| da min | 147mm |
| Da max | 263mm |
| Db max | 271mm |
| ra max | 3mm |
| rb max | 1.5mm |
