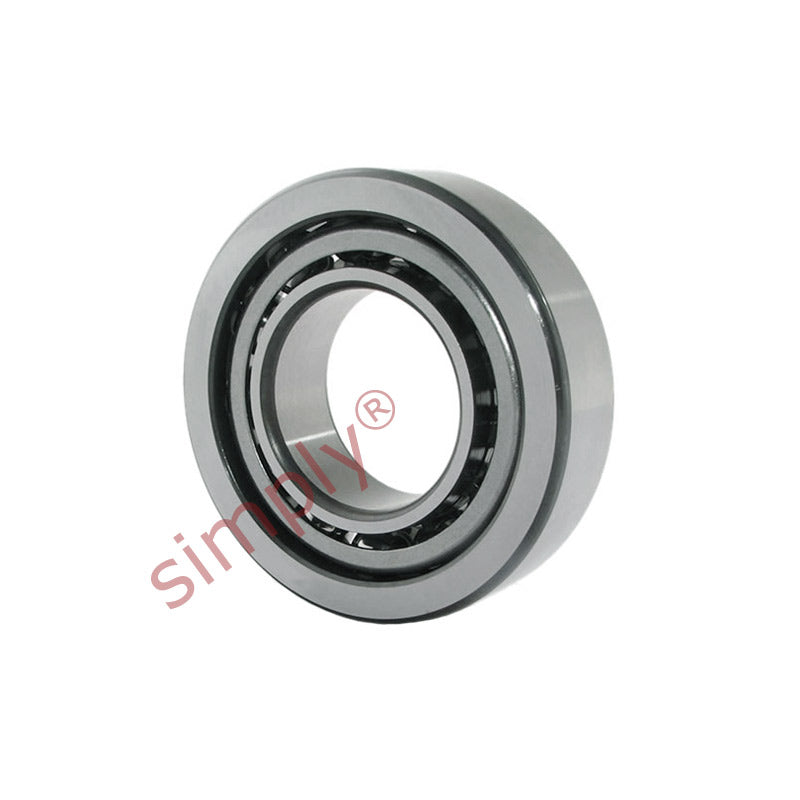

SKF 7322BECBM Single Row Angular Contact Ball Bearing 110x240x50mm
SKF 7322BECBM Single Row Angular Contact Ball Bearing 110x240x50mm
Regular price
$2,077.96
ex VAT
Regular price
Sale price
$2,077.96
ex VAT
Equivalent to: 7322BECBM
In stock
Price Break
10+
$1,849.38
19+
$1,745.49
29+
$1,724.71
39+
$1,703.93
49+
$1,683.15
74+
$1,662.37
99+
$1,558.47
199+
$1,537.69
249+
$1,516.91
499+
$1,496.13
999+
$1,454.57
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7322BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7322BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 240mm |
| B | 50mm |
| Dynamic load Cr | 225 kN |
| Static load Cor | 224 kN |
| Fatigue load limit Pu | 7.2 kN |
| Reference speed | 3200 rpm |
| Limit speed | 3400 rpm |
| Weight | 10.7 kg |
| d1 | 160.8mm |
| d2 | 135mm |
| D1 | 193.5mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 99mm |
| da min | 124mm |
| Da max | 226mm |
| Db max | 233mm |
| ra max | 2.5mm |
| rb max | 1mm |
