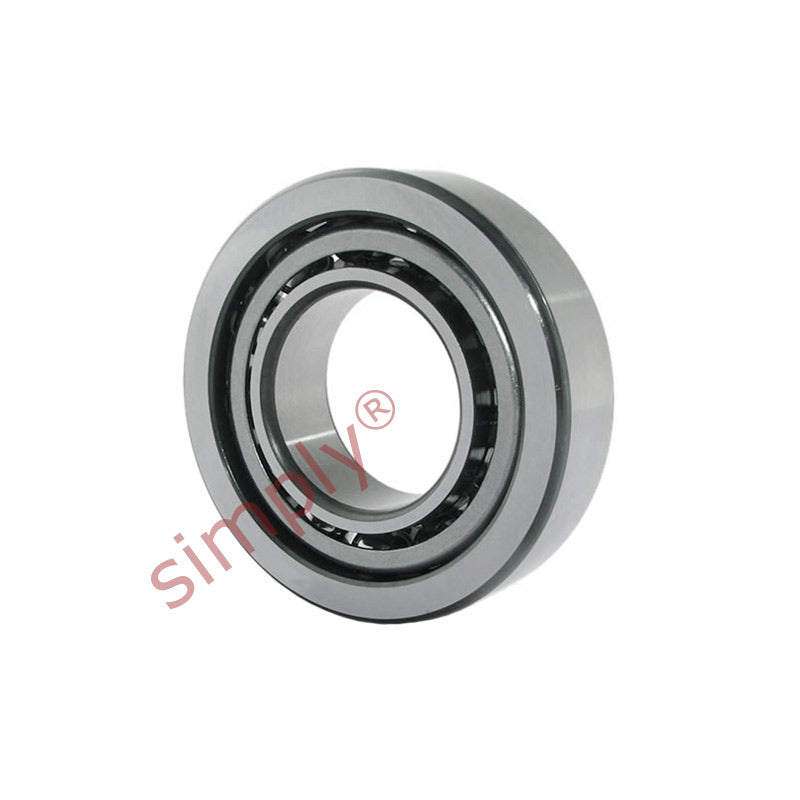

SKF 7319BECBM Single Row Angular Contact Ball Bearing 95x200x45mm
SKF 7319BECBM Single Row Angular Contact Ball Bearing 95x200x45mm
Regular price
$1,356.17
ex VAT
Regular price
Sale price
$1,356.17
ex VAT
Equivalent to: 7319BECBM
In stock
Price Break
10+
$1,206.99
19+
$1,139.18
29+
$1,125.62
39+
$1,112.06
49+
$1,098.50
74+
$1,084.94
99+
$1,017.13
199+
$1,003.57
249+
$990.00
499+
$976.44
999+
$949.32
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7319BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7319BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 200mm |
| B | 45mm |
| Dynamic load Cr | 180 kN |
| Static load Cor | 163 kN |
| Fatigue load limit Pu | 5.7 kN |
| Reference speed | 4300 rpm |
| Limit speed | 4300 rpm |
| Weight | 6.41 kg |
| d1 | 136.2mm |
| d2 | 114.9mm |
| D1 | 161.3mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 84mm |
| da min | 109mm |
| Da max | 186mm |
| Db max | 193mm |
| ra max | 2.5mm |
| rb max | 1mm |
