SKU: 7318BECBP-SKF

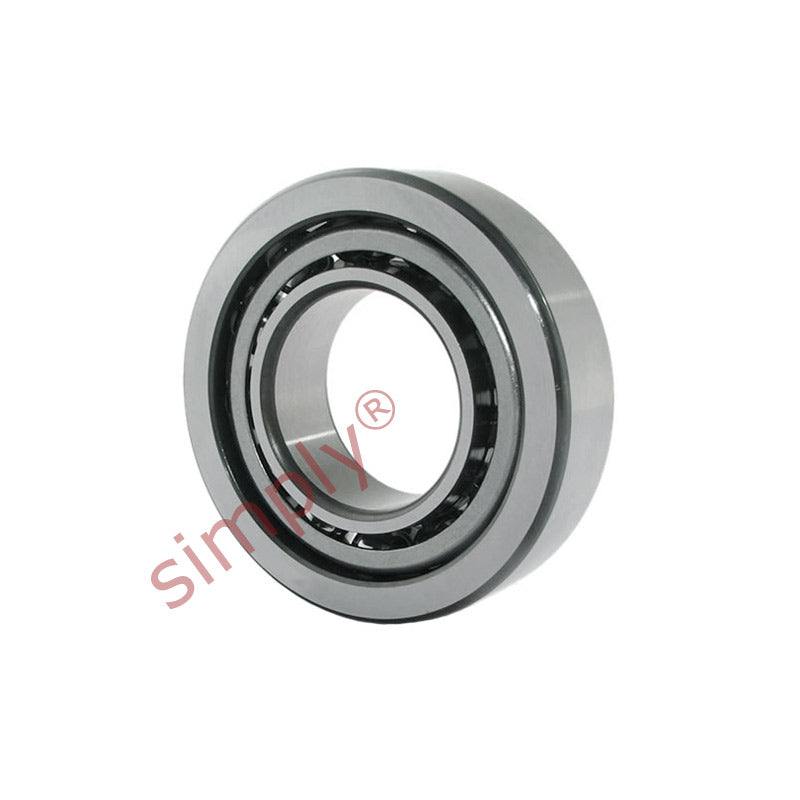

SKF 7318BECBP Single Row Angular Contact Ball Bearing 90x190x43mm
SKF 7318BECBP Single Row Angular Contact Ball Bearing 90x190x43mm
Regular price
$796.08
ex VAT
Regular price
Sale price
$796.08
ex VAT
Equivalent to: 7318BECBP
In stock
Price Break
10+
$708.51
19+
$668.71
29+
$660.75
39+
$652.79
49+
$644.82
74+
$636.86
99+
$597.06
199+
$589.10
249+
$581.14
499+
$573.18
999+
$557.26
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7318BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7318BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 43mm |
| Dynamic load Cr | 166 kN |
| Static load Cor | 146 kN |
| Fatigue load limit Pu | 5.3 kN |
| Reference speed | 4500 rpm |
| Limit speed | 4500 rpm |
| Weight | 4.98 kg |
| d1 | 129.2mm |
| d2 | 109mm |
| D1 | 153.1mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 80mm |
| da min | 104mm |
| Da max | 176mm |
| Db max | 183mm |
| ra max | 2.5mm |
| rb max | 1mm |
