SKU: 7308BEP-SKF

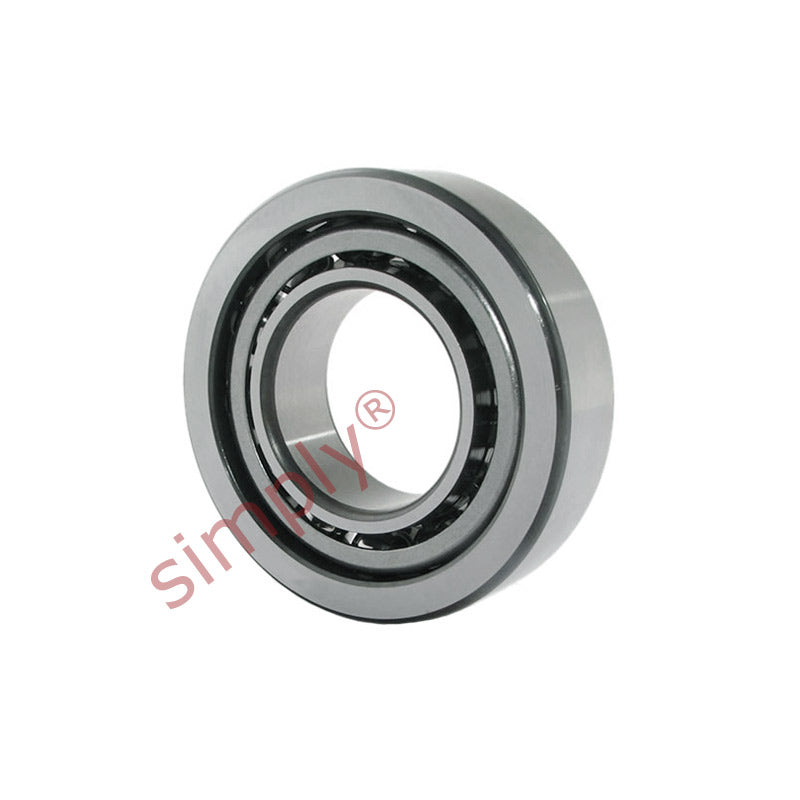

SKF 7308BEP Single Row Angular Contact Ball Bearing 40x90x23mm
SKF 7308BEP Single Row Angular Contact Ball Bearing 40x90x23mm
Regular price
$97.89
ex VAT
Regular price
Sale price
$97.89
ex VAT
Equivalent to: 7308BEP
In stock
Price Break
10+
$87.12
19+
$82.23
29+
$81.25
39+
$80.27
49+
$79.29
74+
$78.31
99+
$73.42
199+
$72.44
249+
$71.46
499+
$70.48
999+
$68.52
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7308BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7308BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load Cr | 46.2 kN |
| Static load Cor | 30.5 kN |
| Fatigue load limit Pu | 1.13 kN |
| Reference speed | 9000 rpm |
| Limit speed | 9000 rpm |
| Weight | 0.61 kg |
| d1 | 59.7mm |
| d2 | 49.6mm |
| D1 | 71.6mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 39mm |
| da min | 49mm |
| Da max | 81mm |
| Db max | 84.4mm |
| ra max | 1.5mm |
| rb max | 1mm |
