SKU: 7308-B-TVP-UO

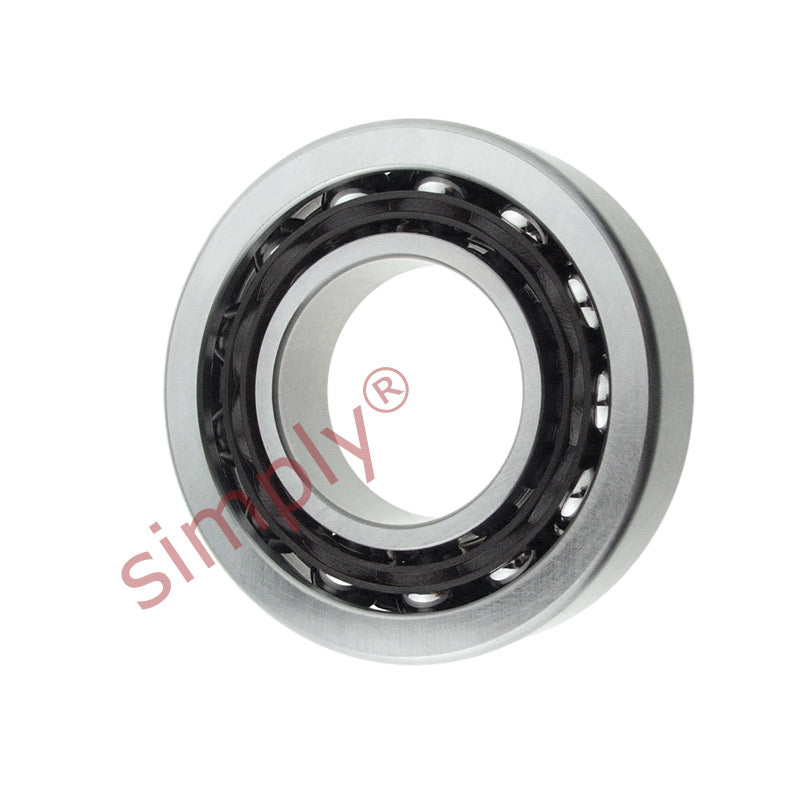

Major Brand 7308BTVPUO Open Single Row Angular Contact Ball Bearing 40x90x23mm
Major Brand 7308BTVPUO Open Single Row Angular Contact Ball Bearing 40x90x23mm
Regular price
$109.31
ex VAT
Regular price
Sale price
$109.31
ex VAT
In stock
Price Break
10+
$97.29
19+
$91.82
29+
$90.73
39+
$89.63
49+
$88.54
74+
$87.45
99+
$81.98
199+
$80.89
249+
$79.80
499+
$78.70
999+
$76.52
Couldn't load pickup availability
Description
Description
Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| Dynamic Load | 46.2 kN |
| Static Load | 30.5 kN |
| Weight | 0.61kg |
