SKU: 7240BCBM-SKF

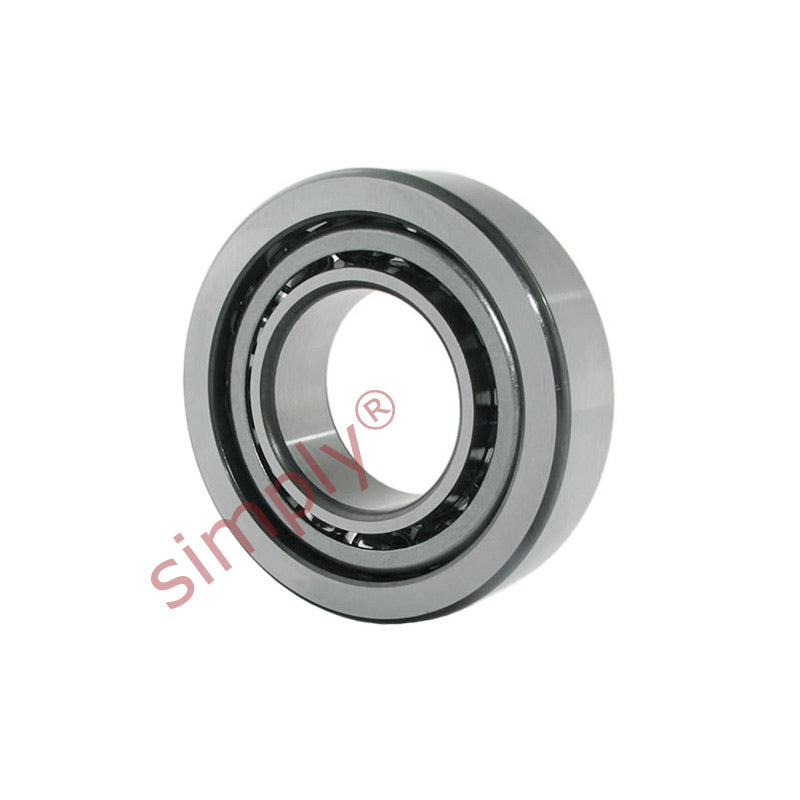

SKF 7240BCBM Single Row Angular Contact Ball Bearing 200x360x58mm
SKF 7240BCBM Single Row Angular Contact Ball Bearing 200x360x58mm
Regular price
$5,614.03
ex VAT
Regular price
Sale price
$5,614.03
ex VAT
Equivalent to: 7240BCBM
In stock
Price Break
10+
$4,996.49
19+
$4,715.79
29+
$4,659.64
39+
$4,603.50
49+
$4,547.36
74+
$4,491.22
99+
$4,210.52
199+
$4,154.38
249+
$4,098.24
499+
$4,042.10
999+
$3,929.82
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7240BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7240BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 360mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 200mm |
|---|---|
| D | 360mm |
| B | 58mm |
| Dynamic load Cr | 325 kN |
| Static load Cor | 430 kN |
| Fatigue load limit Pu | 11 kN |
| Reference speed | 1800 rpm |
| Limit speed | 2000 rpm |
| Weight | 25 kg |
| d1 | 263.3mm |
| d2 | 235.1mm |
| D1 | 300.8mm |
| r1r2 min | 4mm |
| r3r4 min | 1.5mm |
| a | 146mm |
| da min | 217mm |
| Da max | 343mm |
| Db max | 351mm |
| ra max | 3mm |
| rb max | 1.5mm |
