SKU: 7226BM-SKF

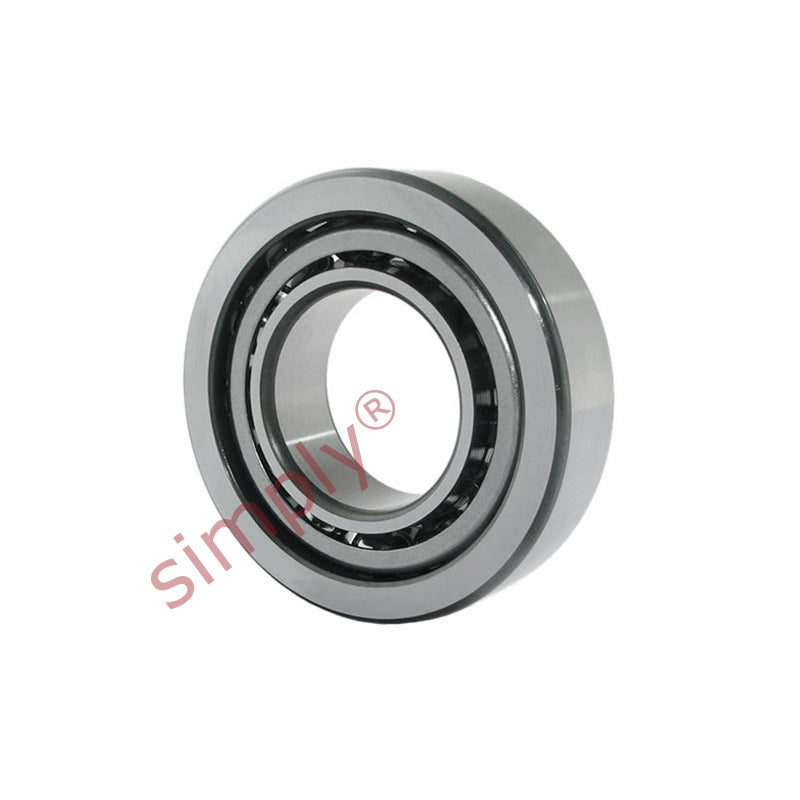

SKF 7226BM Single Row Angular Contact Ball Bearing 130x230x40mm
SKF 7226BM Single Row Angular Contact Ball Bearing 130x230x40mm
Regular price
$1,491.72
ex VAT
Regular price
Sale price
$1,491.72
ex VAT
Equivalent to: 7226BM
In stock
Price Break
10+
$1,327.63
19+
$1,253.04
29+
$1,238.13
39+
$1,223.21
49+
$1,208.29
74+
$1,193.38
99+
$1,118.79
199+
$1,103.87
249+
$1,088.96
499+
$1,074.04
999+
$1,044.20
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7226BM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7226BM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 230mm |
| B | 40mm |
| Dynamic load Cr | 186 kN |
| Static load Cor | 193 kN |
| Fatigue load limit Pu | 6.1 kN |
| Reference speed | 3200 rpm |
| Limit speed | 3400 rpm |
| Weight | 6.76 kg |
| d1 | 169mm |
| d2 | 149.6mm |
| D1 | 192.6mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 96mm |
| da min | 144mm |
| Da max | 216mm |
| Db max | 222mm |
| ra max | 2.5mm |
| rb max | 1mm |
