SKU: 7207BECBM-SKF

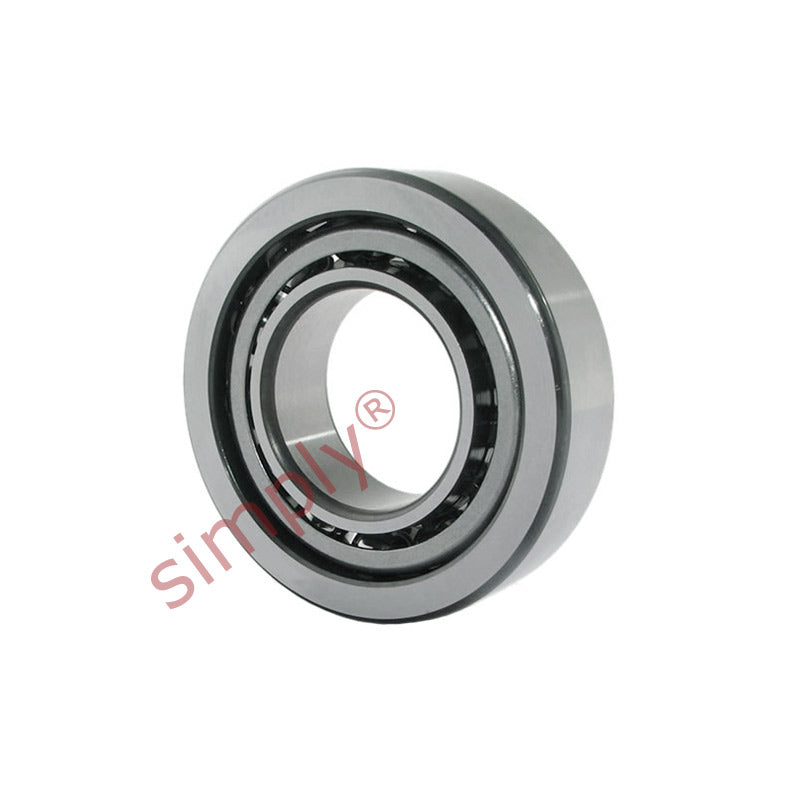

SKF 7207BECBM Single Row Angular Contact Ball Bearing 35x72x17mm
SKF 7207BECBM Single Row Angular Contact Ball Bearing 35x72x17mm
Regular price
$172.86
ex VAT
Regular price
Sale price
$172.86
ex VAT
Equivalent to: 7207BECBM
In stock
Price Break
10+
$153.85
19+
$145.20
29+
$143.47
39+
$141.75
49+
$140.02
74+
$138.29
99+
$129.65
199+
$127.92
249+
$126.19
499+
$124.46
999+
$121.00
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7207BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7207BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load Cr | 31 kN |
| Static load Cor | 20.8 kN |
| Fatigue load limit Pu | 0.88 kN |
| Reference speed | 12000 rpm |
| Limit speed | 12000 rpm |
| Weight | 0.3 kg |
| d1 | 49.7mm |
| d2 | 42mm |
| D1 | 58.3mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| a | 31mm |
| da min | 42mm |
| Da max | 65mm |
| Db max | 67.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
