SKU: 7205BECBM-SKF

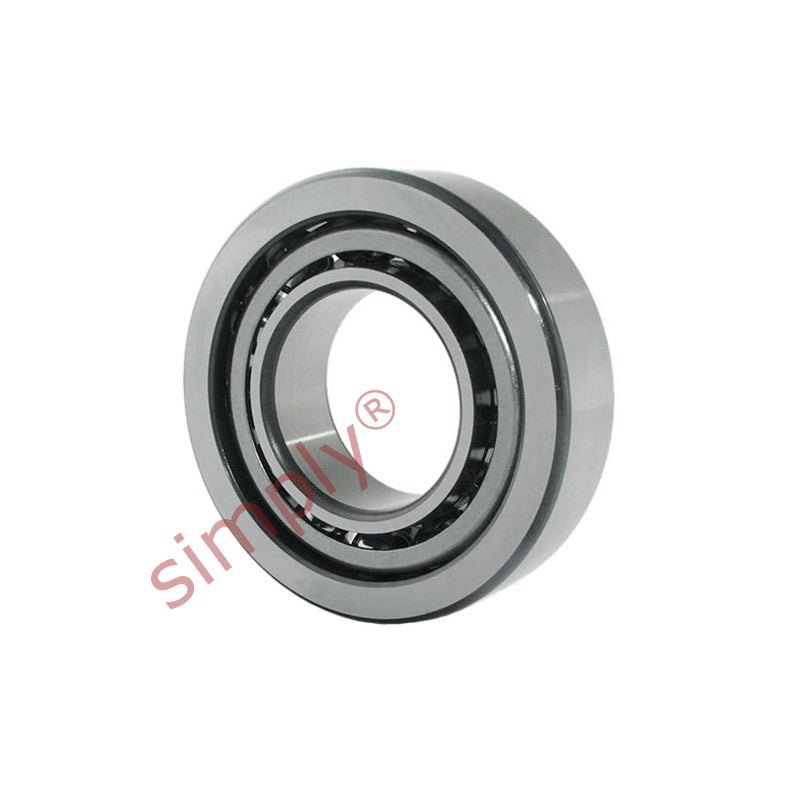

SKF 7205BECBM Single Row Angular Contact Ball Bearing 25x52x15mm
SKF 7205BECBM Single Row Angular Contact Ball Bearing 25x52x15mm
Regular price
$141.14
ex VAT
Regular price
Sale price
$141.14
ex VAT
Equivalent to: 7205BECBM
In stock
Price Break
10+
$125.61
19+
$118.56
29+
$117.15
39+
$115.73
49+
$114.32
74+
$112.91
99+
$105.86
199+
$104.44
249+
$103.03
499+
$101.62
999+
$98.80
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7205BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7205BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

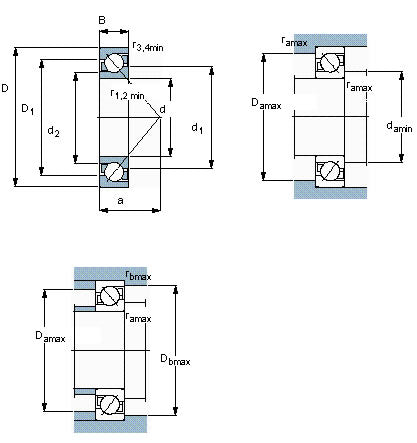

| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load Cr | 15.6 kN |
| Static load Cor | 10 kN |
| Fatigue load limit Pu | 0.43 kN |
| Reference speed | 17000 rpm |
| Limit speed | 17000 rpm |
| Weight | 0.14 kg |
| d1 | 36.1mm |
| d2 | 30.9mm |
| D1 | 41.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| a | 23.7mm |
| da min | 30.6mm |
| Da max | 46.4mm |
| Db max | 47.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
