SKU: 719USSC20 .A21.I/1.DB.M-UKF

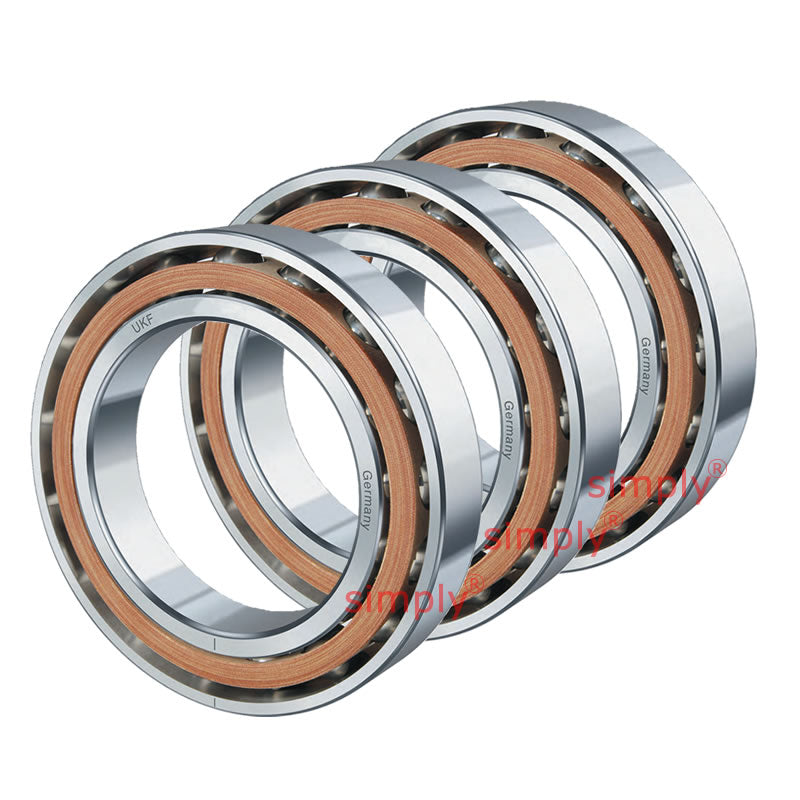

UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
Regular price
$427.27
ex VAT
Regular price
Sale price
$427.27
ex VAT
Equivalent to: 719USSC20 .A21.I/1.DB.M
In stock
Price Break
3+
$201.79
5+
$190.45
10+
$188.19
25+
$185.92
49+
$183.65
74+
$181.38
99+
$170.05
199+
$167.78
249+
$165.51
499+
$163.25
999+
$158.71
Share this product
Description
Description
Equivalent: 719USSC20 .A21.I/1.DB.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 9mm |
| Dynamic load Co | 2255 N |
| Static load C | 4900 N |
| Speed in Grease | 46200 rpm |
| Speed in Oil | 71400 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 23mm |
| D<sub>a</sub> | 34mm |
| Axial Preload F<sub>v</sub> L | 60 N |
| Axial Preload F<sub>v</sub> M | 180 N |
| Axial Preload F<sub>v</sub> S | 360 N |
| Axial Rigidity R<sub>a</sub> L | 48 N/μm |
| Axial Rigidity R<sub>a</sub> M | 69 N/μm |
| Axial Rigidity R<sub>a</sub> S | 18 N/μm |
| Radial Rigidity R<sub>r</sub> L | 196 N/μm |
| Radial Rigidity R <sub>r</sub> M | 276 N/μm |
| Radial Rigidity <sub>r</sub> S | 351 N/μm |
| Weight | 0.03 kg |
