SKU: 719USOC15 .A21.0/I.M-UKF

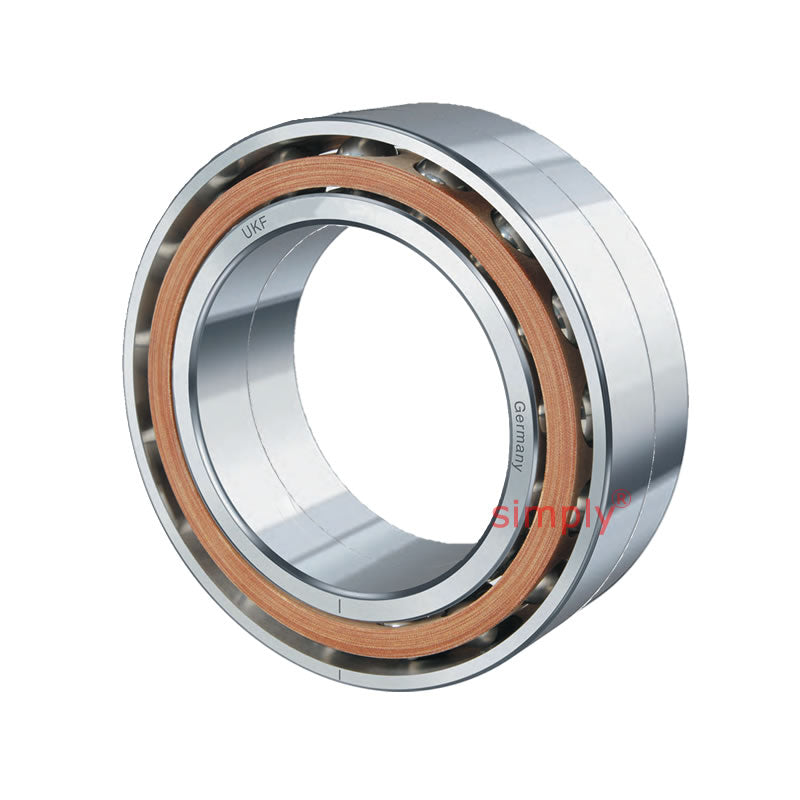

UKF 719USOC15A210IM Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm

Name: UKF 719USOC15A210IM Super Precision Double Row Angular Contact Spindle Bearing 15x28x14mm
Brand: UKF
SKU: 719USOC15 .A21.0/I.M-UKF
Price: 533.80 CAD
Availability: InStock

$533.80 ex VAT

Sale Sold out

Equivalent to: 719USOC15 .A21.0/I.M

In stock

Price Break

3+ $252.10

5+ $237.94

10+ $235.10

25+ $232.27

49+ $229.44

74+ $226.61

99+ $212.44

199+ $209.61

249+ $206.78

499+ $203.95

999+ $198.28

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 719USOC15 .A21.0/I.M

Brand / Quality:: UKF - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 28mm
Width:: 14mm
Seals / Shields:: None
Style:: Double Row Angular Contact Spindle Bearings
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Medium preload

Technical

d	15mm
D	28mm
B	14mm
Dynamic load Co	2860 N
Static load C	5810 N
Speed in Grease	57400 rpm
Speed in Oil	89600 rpm
r<sub>a</sub>	0.15mm
d<sub>a</sub>	17.5mm
D<sub>a</sub>	25.5mm
Axial Preload F<sub>v</sub> L	30 N
Axial Preload F<sub>v</sub> M	100 N
Axial Preload F<sub>v</sub> S	200 N
Axial Rigidity R<sub>a</sub> L	33 N/μm
Axial Rigidity R<sub>a</sub> M	49 N/μm
Axial Rigidity R<sub>a</sub> S	62 N/μm
Radial Rigidity R<sub>r</sub> L	132 N/μm
Radial Rigidity R <sub>r</sub> M	201 N/μm
Radial Rigidity <sub>r</sub> S	253 N/μm
Weight	0.03 kg
