SKU: 70USSC20 .A21.0/I.M-UKF

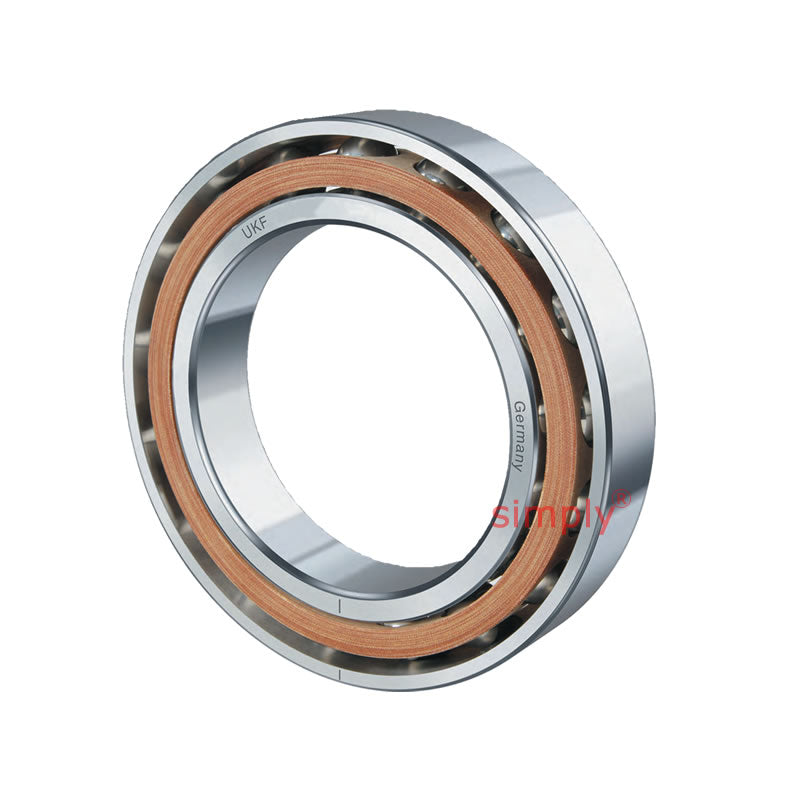

UKF 70USSC20A210IM Super Precision Single Row Angular Contact Spindle Bearing 20x42x12mm
UKF 70USSC20A210IM Super Precision Single Row Angular Contact Spindle Bearing 20x42x12mm
Regular price
$242.19
ex VAT
Regular price
Sale price
$242.19
ex VAT
Equivalent to: 70USSC20 .A21.0/I.M
In stock
Price Break
3+
$114.38
5+
$107.96
10+
$106.67
25+
$105.39
49+
$104.10
74+
$102.82
99+
$96.39
199+
$95.10
249+
$93.82
499+
$92.53
999+
$89.96
Share this product
Description
Description
Equivalent: 70USSC20 .A21.0/I.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 12mm |
| Dynamic load Co | 3520 N |
| Static load C | 7560 N |
| Speed in Grease | 42000 rpm |
| Speed in Oil | 64400 rpm |
| r<sub>a</sub> | 0.6mm |
| d<sub>a</sub> | 25mm |
| D<sub>a</sub> | 37mm |
| Axial Preload F<sub>v</sub> L | 70 N |
| Axial Preload F<sub>v</sub> M | 210 N |
| Axial Preload F<sub>v</sub> S | 430 N |
| Axial Rigidity R<sub>a</sub> L | 49 N/μm |
| Axial Rigidity R<sub>a</sub> M | 72 N/μm |
| Axial Rigidity R<sub>a</sub> S | 92 N/μm |
| Radial Rigidity R<sub>r</sub> L | 201 N/μm |
| Radial Rigidity R <sub>r</sub> M | 288 N/μm |
| Radial Rigidity <sub>r</sub> S | 368 N/μm |
| Weight | 0.06 kg |
