SKU: 70USOC15 .A21.0/I.S-UKF

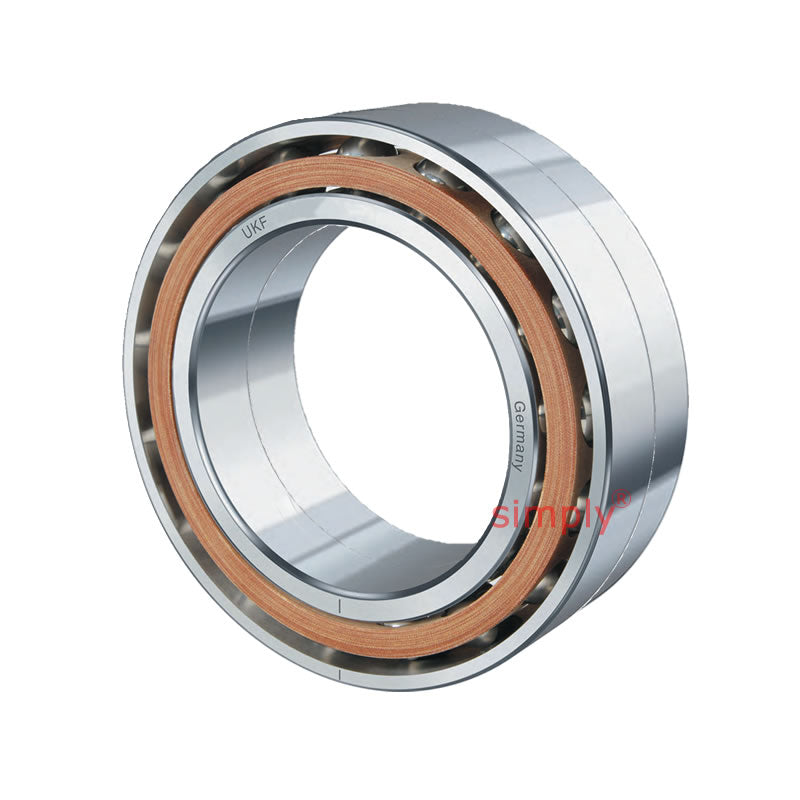

UKF 70USOC15A210IS Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
UKF 70USOC15A210IS Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
Regular price
$790.03
ex VAT
Regular price
Sale price
$790.03
ex VAT
Equivalent to: 70USOC15 .A21.0/I.S
In stock
Price Break
3+
$373.12
5+
$352.16
10+
$347.96
25+
$343.77
49+
$339.58
74+
$335.39
99+
$314.42
199+
$310.23
249+
$306.04
499+
$301.85
999+
$293.46
Share this product
Description
Description
Equivalent: 70USOC15 .A21.0/I.S
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 18mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Heavy preload
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 18mm |
| Dynamic load Co | 3960 N |
| Static load C | 7700 N |
| Speed in Grease | 52500 rpm |
| Speed in Oil | 81200 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 18.5mm |
| D<sub>a</sub> | 28.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 130 N |
| Axial Preload F<sub>v</sub> S | 260 N |
| Axial Rigidity R<sub>a</sub> L | 37 N/μm |
| Axial Rigidity R<sub>a</sub> M | 55 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 150 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.05 kg |
