SKU: 6907ZZNR/2AS-NTN

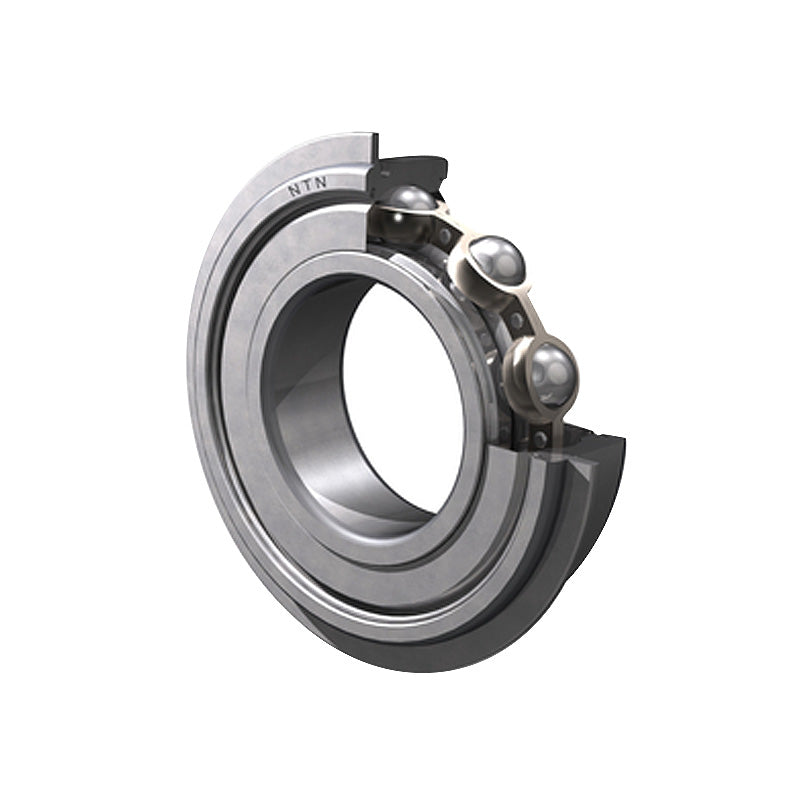

NTN 6907ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x55x10mm
Equivalent to: 6907ZZNRCM 61907ZZNRCM 6907ZZNR 61907ZZNR 6907ZZNR 69072ZNR 6907ZZNR 69072ZRNR 6907ZZENR 6907FFNR 6907DDNR 6907DDCNR 6907KDDCNR EL352ZNR EL35ZZNR 9107KDDG 4773L07 107KSFFG
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6907ZZNRCM 61907ZZNRCM 6907ZZNR 61907ZZNR 6907ZZNR 69072ZNR 6907ZZNR 69072ZRNR 6907ZZENR 6907FFNR 6907DDNR 6907DDCNR 6907KDDCNR EL352ZNR EL35ZZNR 9107KDDG 4773L07 107KSFFG
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 55mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 6.85 kN |
| C<sub>u</sub> | 0.495 kN |
| f<sub>0</sub> | 15.8 rpm |
| Grease | 12000 rpm |
| --- | Fitting Dimensions |
| Oil | 15000 rpm |
| D<sub>1</sub> Max. | 53.7mm |
| a Max. | 1.7mm |
| b Min. | 0.95mm |
| r<sub>o</sub> Max. | 0.25mm |
