SKU: 6906LLB/5K-NTN

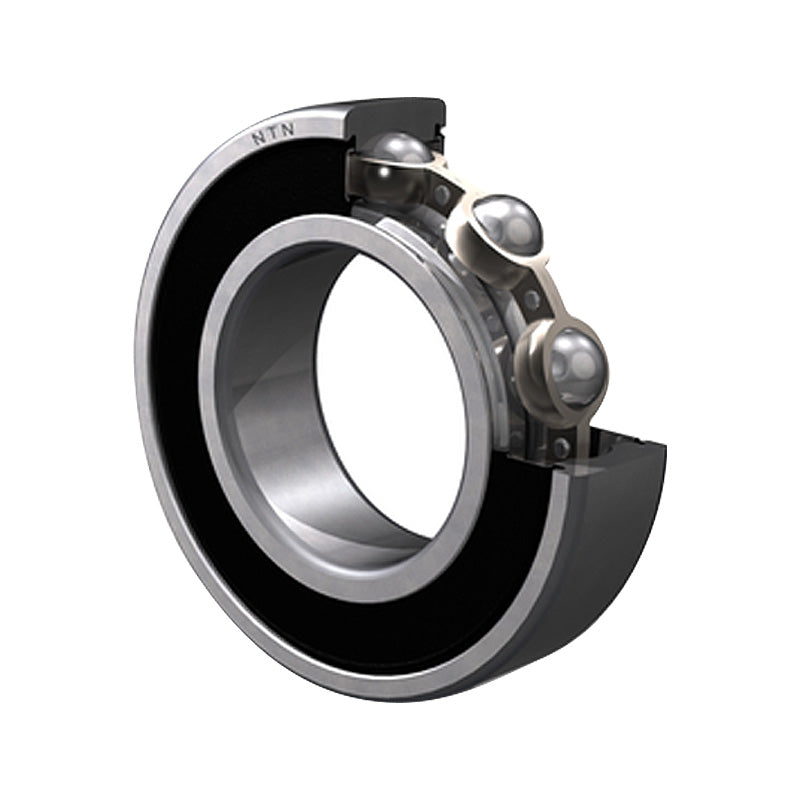

NTN 6906LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x47x9mm
NTN 6906LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x47x9mm
Regular price
$47.83
ex VAT
Regular price
Sale price
$47.83
ex VAT
Equivalent to: 6906LLBCM 61906LLBCM 6906LLB 61906LLB 69062NKE 6906VV 69062RSL 69062RZ
In stock
Price Break
3+
$22.59
5+
$21.32
10+
$21.07
25+
$20.81
49+
$20.56
74+
$20.30
99+
$19.04
199+
$18.78
249+
$18.53
499+
$18.27
999+
$17.77
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6906LLBCM 61906LLBCM 6906LLB 61906LLB 69062NKE 6906VV 69062RSL 69062RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 47mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 8 kN |
| C<sub>or</sub> | 5 kN |
| C<sub>u</sub> | 0.365 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 14000 rpm |
| Oil | 17000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 32mm |
| d<sub>a</sub> Max. | 34mm |
| D<sub>a</sub> Max. | 45mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.057 kg |
