SKU: 6905ZZ-NSK

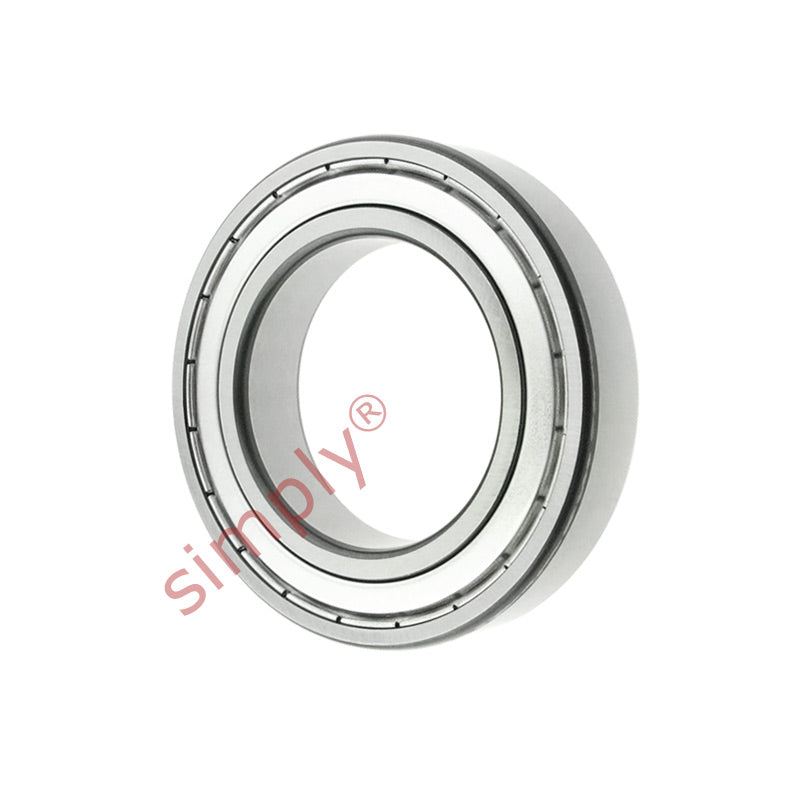

NSK 6905ZZ Metal Shielded Deep Groove Ball Bearing 25x42x9mm
Equivalent to: 6905ZZE 69052Z 6905.2Z 69052ZR 6905FF 61905ZZE 61905ZZ 619052Z 61905.2Z 619052ZR 61905FF
In stock
Price Break
Share this product
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6905ZZE 69052Z 6905.2Z 69052ZR 6905FF 61905ZZE 61905ZZ 619052Z 61905.2Z 619052ZR 61905FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 9mm |
| r min | 0.3mm |
| Dynamic load Cr | 7050 N (715 kgf) |
| Static load Cor | 4550 N (460 kgf) |
| Factor | 15.4 |
| Speed in grease | 16000 rpm |
| Speed in oil | 19000 rpm |
| Weight | 0.042 kg |
