SKU: 6901LLB/5K-NTN

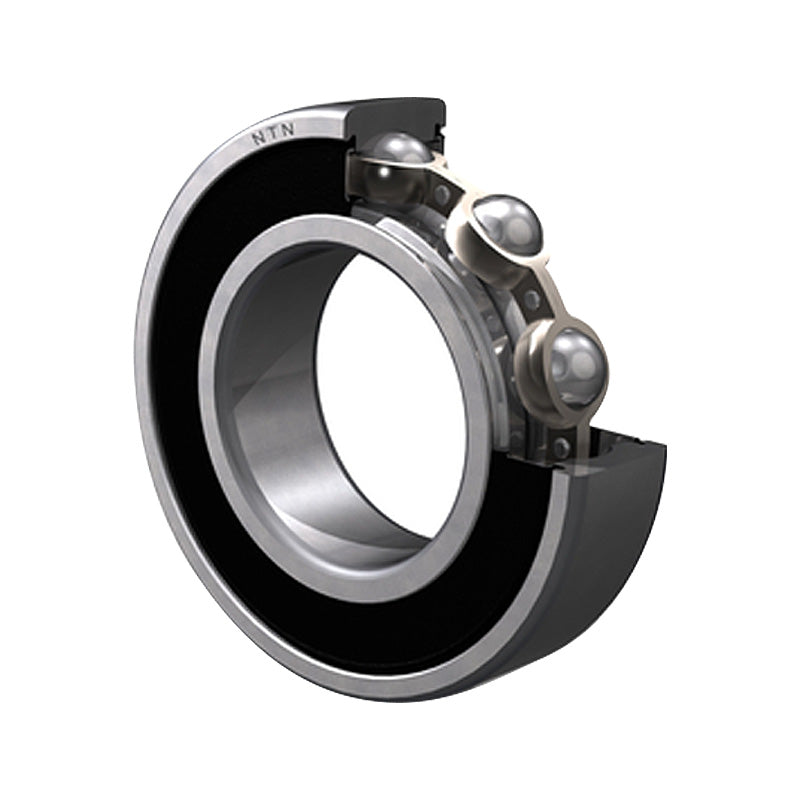

NTN 6901LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 12x24x6mm
NTN 6901LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 12x24x6mm
Regular price
$22.52
ex VAT
Regular price
Sale price
$22.52
ex VAT
Equivalent to: 6901LLBCM 61901LLBCM 6901LLB 61901LLB 69012NKE 6901VV 69012RSL 69012RZ
In stock
Price Break
3+
$10.64
5+
$10.04
10+
$9.92
25+
$9.80
49+
$9.68
74+
$9.56
99+
$8.96
199+
$8.84
249+
$8.72
499+
$8.60
999+
$8.37
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6901LLBCM 61901LLBCM 6901LLB 61901LLB 69012NKE 6901VV 69012RSL 69012RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 24mm |
| B | 6mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 3.2 kN |
| C<sub>or</sub> | 1.46 kN |
| C<sub>u</sub> | 0.115 kN |
| f<sub>0</sub> | 14.5 kN |
| Grease | 27000 rpm |
| Oil | 32000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| d<sub>a</sub> Max. | 15mm |
| D<sub>a</sub> Max. | 22mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.011 kg |
