SKU: 6812LLB/5K-NTN

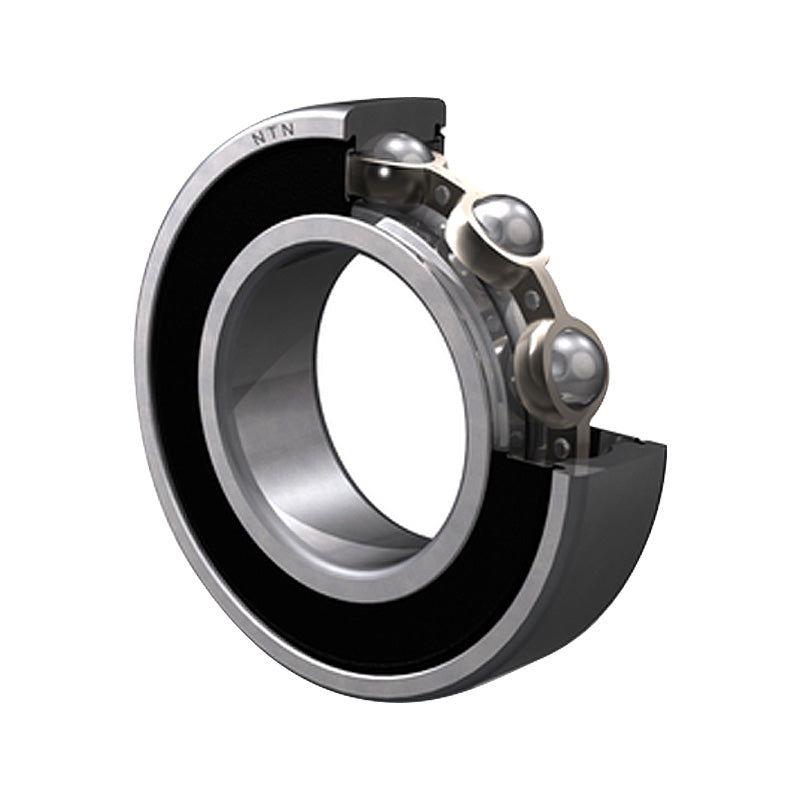

NTN 6812LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 60x78x10mm
NTN 6812LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 60x78x10mm
Regular price
$132.10
ex VAT
Regular price
Sale price
$132.10
ex VAT
Equivalent to: 6812LLBCM 61812LLBCM 6812LLB 61812LLB 68122NKE 6812VV 68122RSL 68122RZ
In stock
Price Break
3+
$62.39
5+
$58.88
10+
$58.18
25+
$57.48
49+
$56.78
74+
$56.08
99+
$52.58
199+
$51.87
249+
$51.17
499+
$50.47
999+
$49.07
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6812LLBCM 61812LLBCM 6812LLB 61812LLB 68122NKE 6812VV 68122RSL 68122RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 10mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 78mm |
| B | 10mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.7 kN |
| C<sub>or</sub> | 10.6 kN |
| C<sub>u</sub> | 0.705 kN |
| f<sub>0</sub> | 16.3 kN |
| Grease | 8000 rpm |
| Oil | 9400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 62mm |
| d<sub>a</sub> Max. | 64.5mm |
| D<sub>a</sub> Max. | 76mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.106 kg |
