SKU: 6810JRLLB/5K-NTN

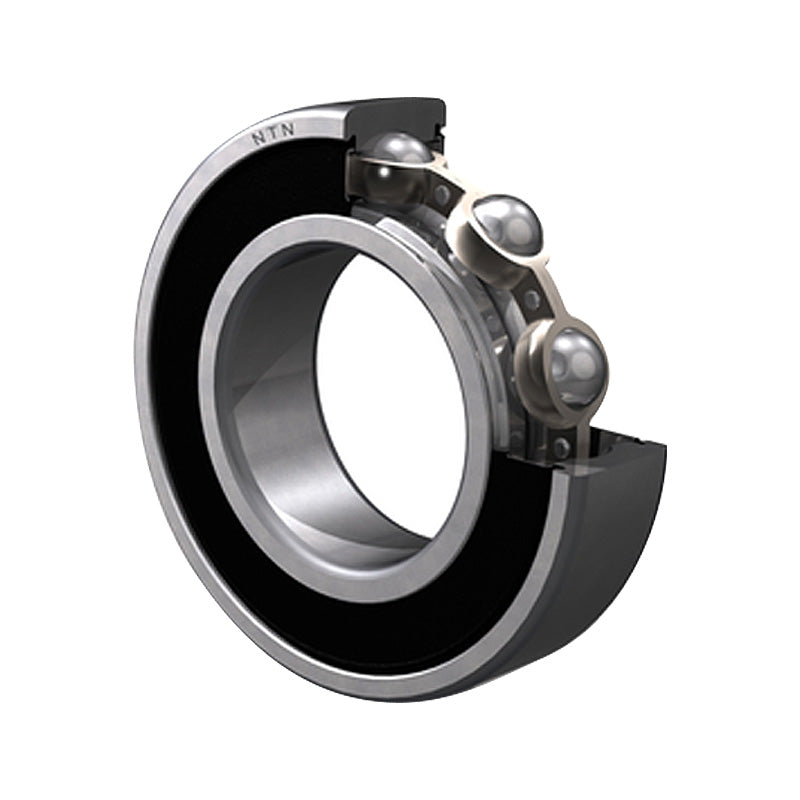

NTN 6810JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 50x65x7mm
NTN 6810JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 50x65x7mm
Regular price
$99.26
ex VAT
Regular price
Sale price
$99.26
ex VAT
Equivalent to: 6810JRLLBCM 61810JRLLBCM 6810JRLLB 61810JRLLB 68102NKE 6810VV 68102RSL 68102RZ
In stock
Price Break
3+
$46.88
5+
$44.24
10+
$43.72
25+
$43.19
49+
$42.66
74+
$42.14
99+
$39.50
199+
$38.98
249+
$38.45
499+
$37.92
999+
$36.87
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6810JRLLBCM 61810JRLLBCM 6810JRLLB 61810JRLLB 68102NKE 6810VV 68102RSL 68102RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 7mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 65mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.3 kN |
| C<sub>or</sub> | 6.1 kN |
| C<sub>u</sub> | 0.405 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 9600 rpm |
| Oil | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 52mm |
| d<sub>a</sub> Max. | 54mm |
| D<sub>a</sub> Max. | 63mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.052 kg |
