SKU: 6804JRLLB/5K-NTN

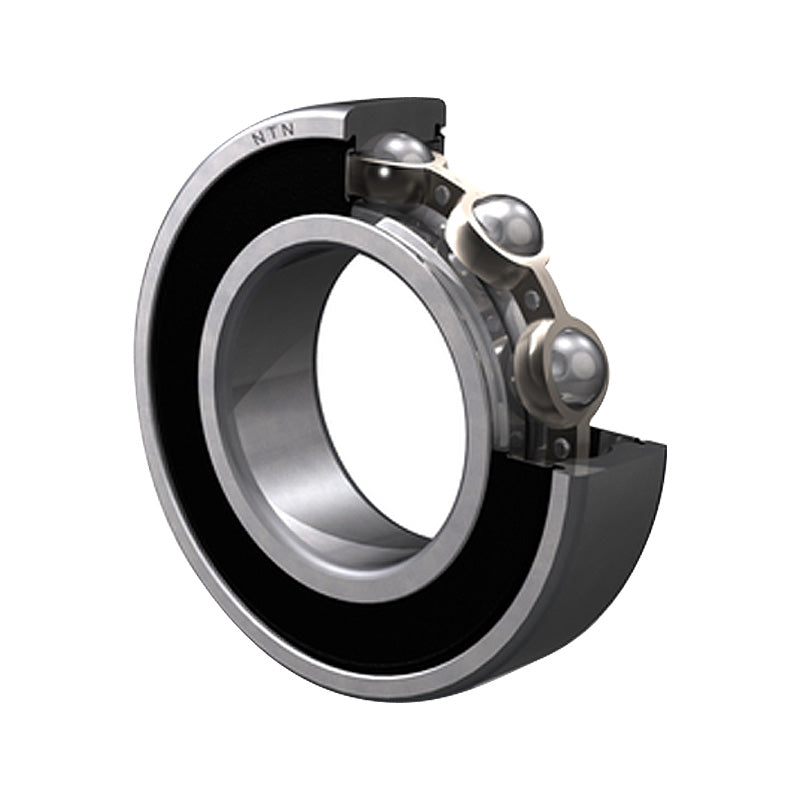

NTN 6804JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x32x7mm
NTN 6804JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x32x7mm
Regular price
$31.81
ex VAT
Regular price
Sale price
$31.81
ex VAT
Equivalent to: 6804JRLLBCM 61804JRLLBCM 6804JRLLB 61804JRLLB 68042NKE 6804VV 68042RSL 68042RZ
In stock
Price Break
3+
$15.02
5+
$14.18
10+
$14.01
25+
$13.84
49+
$13.67
74+
$13.50
99+
$12.66
199+
$12.49
249+
$12.32
499+
$12.15
999+
$11.82
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6804JRLLBCM 61804JRLLBCM 6804JRLLB 61804JRLLB 68042NKE 6804VV 68042RSL 68042RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 7mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 32mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 4.45 kN |
| C<sub>or</sub> | 2.47 kN |
| C<sub>u</sub> | 0.185 kN |
| f<sub>0</sub> | 15.5 kN |
| Grease | 21000 rpm |
| Oil | 25000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 22mm |
| d<sub>a</sub> Max. | 22.5mm |
| D<sub>a</sub> Max. | 30mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.019 kg |
