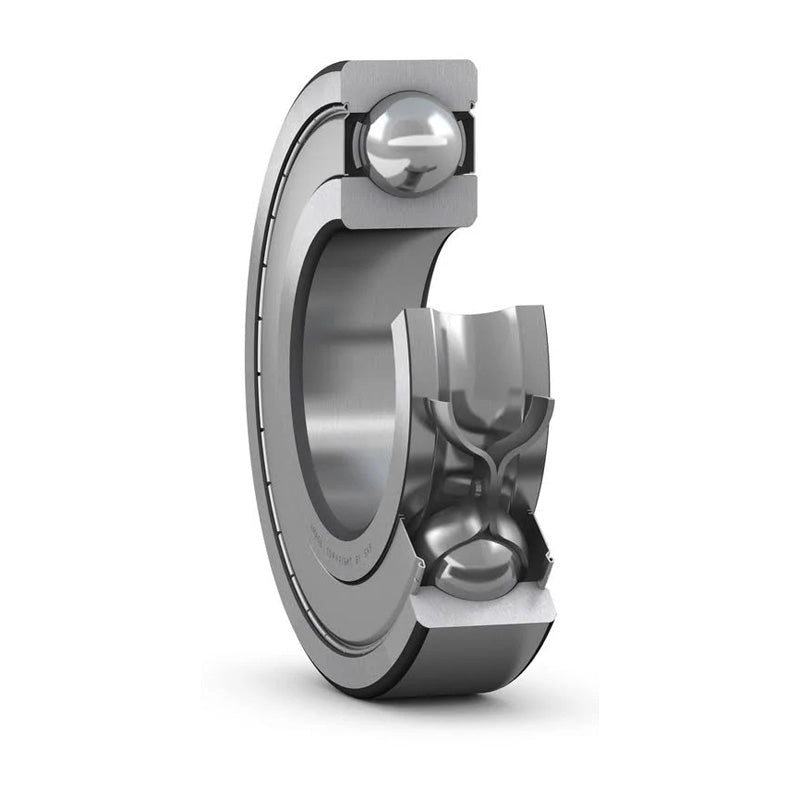

SKF 6342Z Metal Shielded Deep Groove Ball Bearing 4x16x5mm
SKF 6342Z Metal Shielded Deep Groove Ball Bearing 4x16x5mm
Regular price
$20.99
ex VAT
Regular price
Sale price
$20.99
ex VAT
Equivalent to: 634ZZE 634ZZ 634.2Z 634KDD 634DD 634FF 6342ZR 634.ZZ 6342Z 634ZZ
In stock
Price Break
4+
$9.91
10+
$9.36
20+
$9.24
30+
$9.13
50+
$9.02
75+
$8.91
100+
$8.35
200+
$8.24
250+
$8.13
500+
$8.02
1000+
$7.80
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 634ZZE 634ZZ 634.2Z 634KDD 634DD 634FF 6342ZR 634.ZZ 6342Z 634ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 4mm |
|---|---|
| D | 16mm |
| B | 5mm |
| Dynamic load C | 1.11 kN |
| Static load Co | 0.38 kN |
| Fatigue load limit Pu | 0.016 kN |
| Reference speed | 95000 rpm |
| Limiting speed | 48000 rpm |
| Weight | 0.0054 kg |
| d1 | 8.4mm |
| d2 | 0mm |
| D2 | 13.3mm |
| r1r2 min | 0.3mm |
| da min | 6.4mm |
| da max | 0mm |
| Da max | 13.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 8.4 |
