• NACHI 6319ZZ Metal Shielded Deep Groove Ball Bearing 95x200x45mm
1 1

SKU: 6319-ZZ-NACHI

NACHI 6319ZZ Metal Shielded Deep Groove Ball Bearing 95x200x45mm

NACHI 6319ZZ Metal Shielded Deep Groove Ball Bearing 95x200x45mm
$619.01 ex VAT
$619.01 ex VAT
Sale Sold out

Equivalent to: 6319ZZE 63192Z 6319.2Z 6319KDD 6319DD 63192ZR 6319FF

In stock

Price Break
5+ $292.35
9+ $275.92
19+ $272.64
29+ $269.35
49+ $266.07
74+ $262.78
99+ $246.36
199+ $243.08
249+ $239.79
499+ $236.51
999+ $229.94
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.

Equivalent: 6319ZZE 63192Z 6319.2Z 6319KDD 6319DD 63192ZR 6319FF
Brand / Quality:
Nachi - High Quality
Inside Diameter:
95mm
Outside Diameter:
200mm
Width:
45mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard

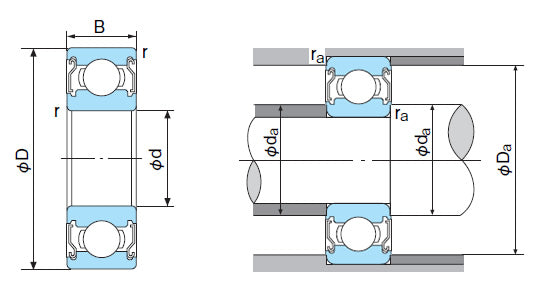

Technical
Inside Diameter d 95mm
Outside Diameter D 200mm
Width B 45mm
Min radius r 3mm
Dynamic load 153000 kN
Static load 118000 kN
Max speed 3300 rpm
da min 109mm
Da max 186mm
ra max 2.5mm
Weight 5.67 kg
