SKU: 6316/C3VL0241-SKF

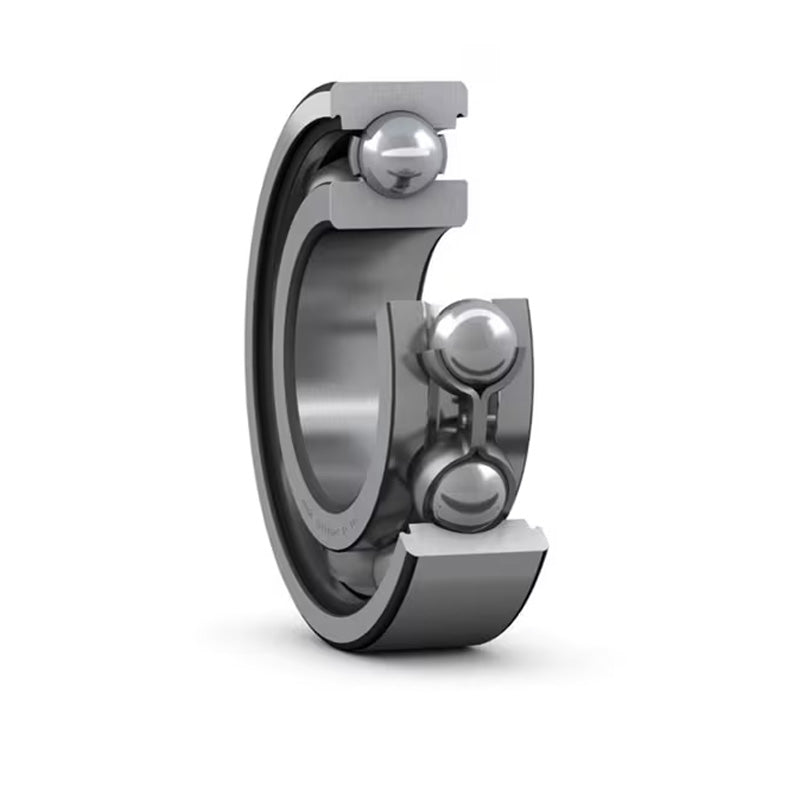

SKF 6316C3VL0241 Insocoat Deep Groove Ball Bearing 80x170x39mm
SKF 6316C3VL0241 Insocoat Deep Groove Ball Bearing 80x170x39mm
Regular price
$1,738.46
ex VAT
Regular price
Sale price
$1,738.46
ex VAT
In stock
Price Break
10+
$1,547.23
19+
$1,460.31
29+
$1,442.92
39+
$1,425.54
49+
$1,408.15
74+
$1,390.77
99+
$1,303.85
199+
$1,286.46
249+
$1,269.08
499+
$1,251.69
999+
$1,216.92
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load Cr | 124 kN |
| Static load Cor | 86.5 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.55 kg |
| d1 | 108mm |
| D1 | 143mm |
| D2 | 149mm |
| r1r2 min | 2.1mm |
| da min | 92mm |
| Da min | 154mm |
| Da max | 158mm |
| ra max | 2mm |
| kr | 0.03 |
| fo | 13 |
