SKU: 6316-2Z-HT-330

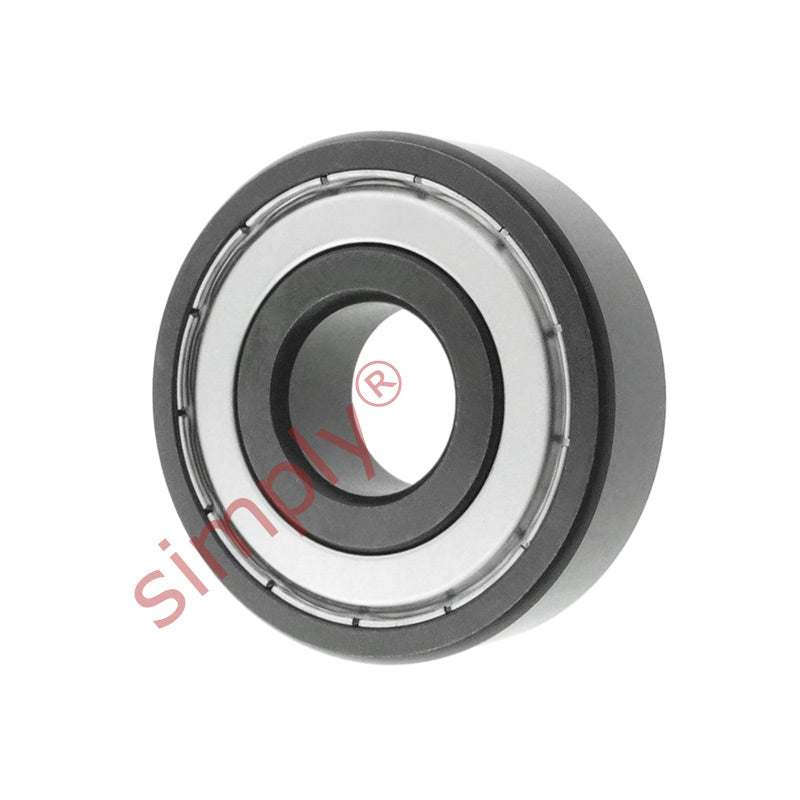

6316ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 80x170x39mm Max 45rpm
6316ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 80x170x39mm Max 45rpm
Regular price
$143.83
ex VAT
Regular price
Sale price
$143.83
ex VAT
Equivalent to: 63162ZVA201 63162ZVA208 63162ZVA228
In stock
Price Break
10+
$128.01
19+
$120.82
29+
$119.38
39+
$117.94
49+
$116.50
74+
$115.06
99+
$107.87
199+
$106.43
249+
$105.00
499+
$103.56
999+
$100.68
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63162ZVA201 63162ZVA208 63162ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 80mm |
|---|---|
| Outside diameter D | 170mm |
| Width W | 39mm |
| Static load max | 47.7 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 45 rpm |
| Weight | 3600 g |
