SKU: 6315-2Z-SKF

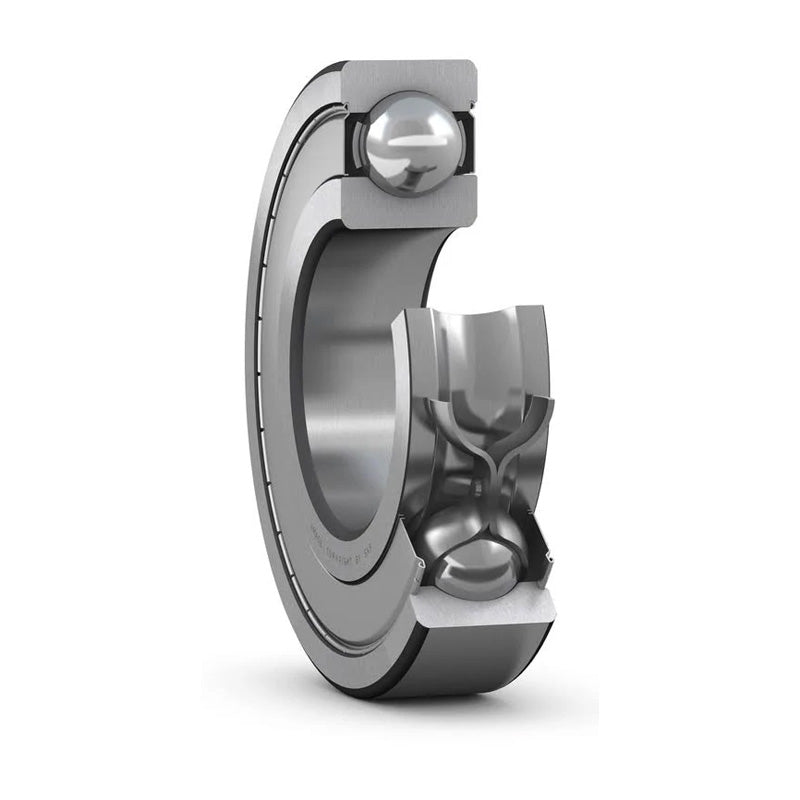

SKF 63152Z Metal Shielded Deep Groove Ball Bearing 75x160x37mm
SKF 63152Z Metal Shielded Deep Groove Ball Bearing 75x160x37mm
Regular price
$221.39
ex VAT
Regular price
Sale price
$221.39
ex VAT
Equivalent to: 6315ZZE 6315ZZ 6315.2Z 6315KDD 6315DD 6315FF 63152ZR 6315ZZ 63152Z 6315ZZ
In stock
Price Break
4+
$104.56
10+
$98.69
20+
$97.51
30+
$96.34
50+
$95.16
75+
$93.99
100+
$88.11
200+
$86.94
250+
$85.76
500+
$84.59
1000+
$82.24
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6315ZZE 6315ZZ 6315.2Z 6315KDD 6315DD 6315FF 63152ZR 6315ZZ 63152Z 6315ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 76.5 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 3 kg |
| d1 | 101mm |
| d2 | 138mm |
| D2 | 0mm |
| r1r2 min | 2.1mm |
| da min | 87mm |
| da max | 0mm |
| Da max | 148mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
