SKU: 6314-2Z-SKF

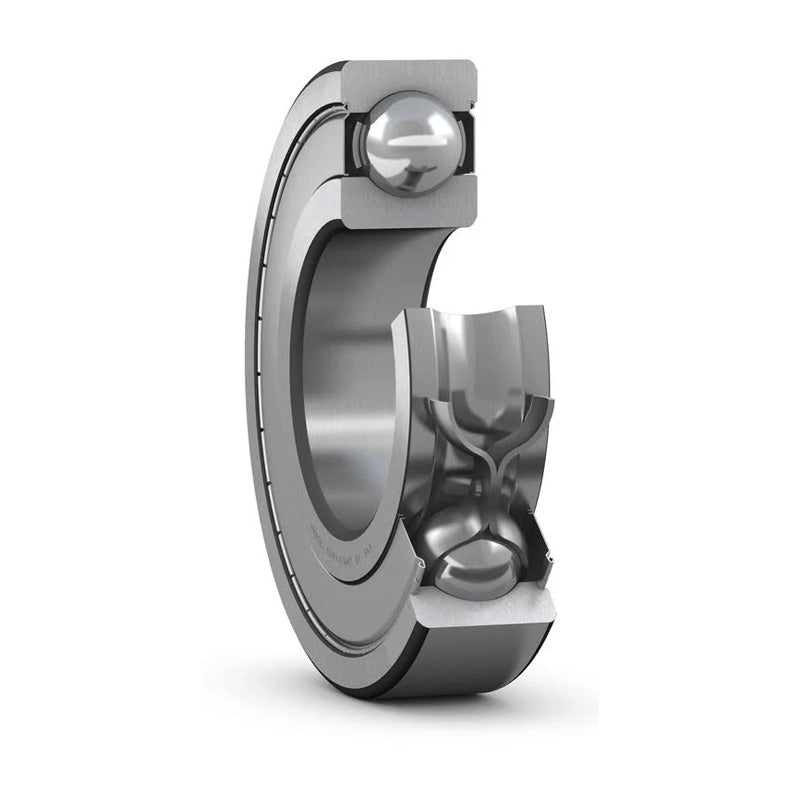

SKF 63142Z Metal Shielded Deep Groove Ball Bearing 70x150x35mm
SKF 63142Z Metal Shielded Deep Groove Ball Bearing 70x150x35mm
Regular price
$182.25
ex VAT
Regular price
Sale price
$182.25
ex VAT
Equivalent to: 6314ZZE 6314ZZ 6314.2Z 6314KDD 6314DD 6314FF 63142ZR 6314ZZ 63142Z 6314ZZ
In stock
Price Break
4+
$86.07
10+
$81.23
20+
$80.27
30+
$79.30
50+
$78.33
75+
$77.36
100+
$72.53
200+
$71.56
250+
$70.59
500+
$69.63
1000+
$67.69
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6314ZZE 6314ZZ 6314.2Z 6314KDD 6314DD 6314FF 63142ZR 6314ZZ 63142Z 6314ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 111 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.5 kg |
| d1 | 95mm |
| d2 | 130mm |
| D2 | 0mm |
| r1r2 min | 2.1mm |
| da min | 82mm |
| da max | 0mm |
| Da max | 138mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
