SKU: 6313-ZZE-NACHI
NACHI 6313ZZE Metal Shielded Deep Groove Ball Bearing 65x140x33mm
NACHI 6313ZZE Metal Shielded Deep Groove Ball Bearing 65x140x33mm
Regular price
$122.59
ex VAT
Regular price
Sale price
$122.59
ex VAT
Equivalent to: 6313ZZ 63132Z 6313.2Z 6313KDD 6313DD 63132ZR 6313FF
In stock
Price Break
10+
$109.11
19+
$102.98
29+
$101.75
39+
$100.52
49+
$99.30
74+
$98.07
99+
$91.94
199+
$90.72
249+
$89.49
499+
$88.26
999+
$85.81
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6313ZZ 63132Z 6313.2Z 6313KDD 6313DD 63132ZR 6313FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard

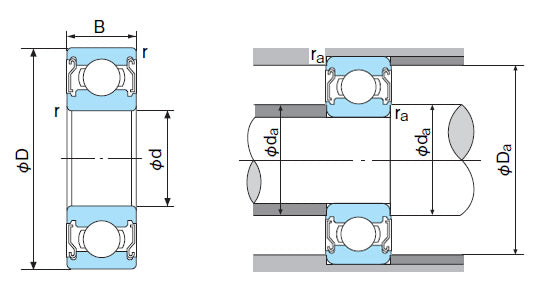

Technical
Technical
| Inside Diameter d | 65mm |
|---|---|
| Outside Diameter D | 140mm |
| Width B | 33mm |
| Min radius r | 2.1mm |
| Dynamic load | 92500 kN |
| Static load | 59500 kN |
| Max speed | 4900 rpm |
| da min | 77mm |
| Da max | 128mm |
| ra max | 2mm |
| Weight | 2.08 kg |
