SKU: 6311-2RSR/C3-FAG

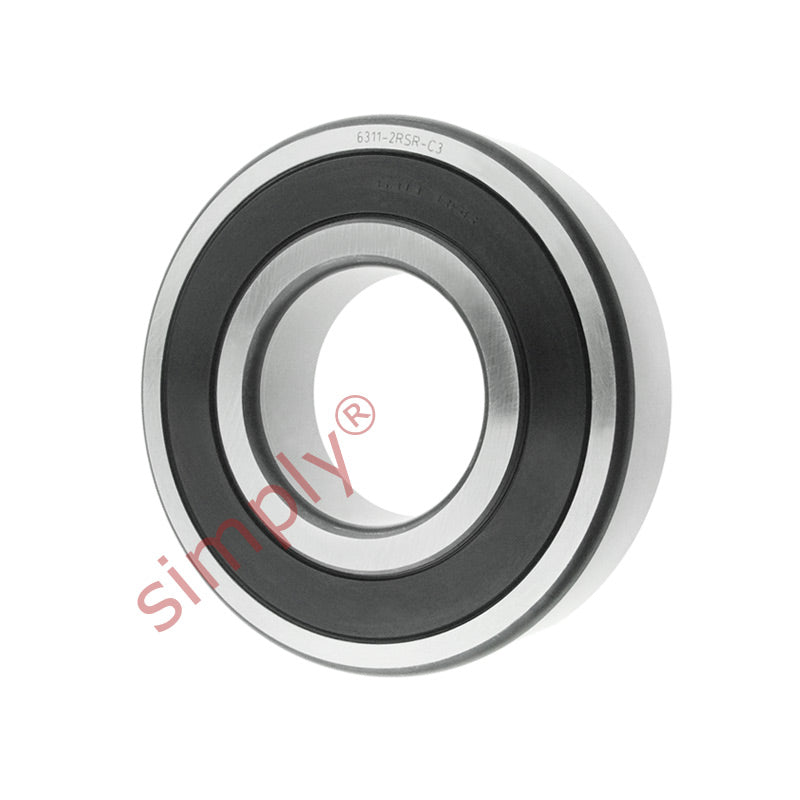

FAG 63112RSRC3 Rubber Sealed Deep Groove Ball Bearing 55x120x29mm
FAG 63112RSRC3 Rubber Sealed Deep Groove Ball Bearing 55x120x29mm
Regular price
$59.85
ex VAT
Regular price
Sale price
$59.85
ex VAT
Equivalent to: 6311NSEC3 6311DUC3 6311RSC3 6311RSHC3 6311PC3 6311RSRC3 6311LUC3 63112NSEC3 6311DDUC3 63112RSC3 63112RS1C3 63112RSHC3 6311PPC3 6311LLU
In stock
Price Break
10+
$28.27
19+
$26.68
29+
$26.36
39+
$26.04
49+
$25.73
74+
$25.41
99+
$23.82
199+
$23.50
249+
$23.18
499+
$22.87
999+
$22.23
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6311NSEC3 6311DUC3 6311RSC3 6311RSHC3 6311PC3 6311RSRC3 6311LUC3 63112NSEC3 6311DDUC3 63112RSC3 63112RS1C3 63112RSHC3 6311PPC3 6311LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 74.1 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 3800 rpm |
| Mass | 1.35 kg |
| d1 | 75.3mm |
| D2 | 104mm |
| r1r2 min | 2mm |
| da min | 66 |
