SKU: 6310ZNR-NTN

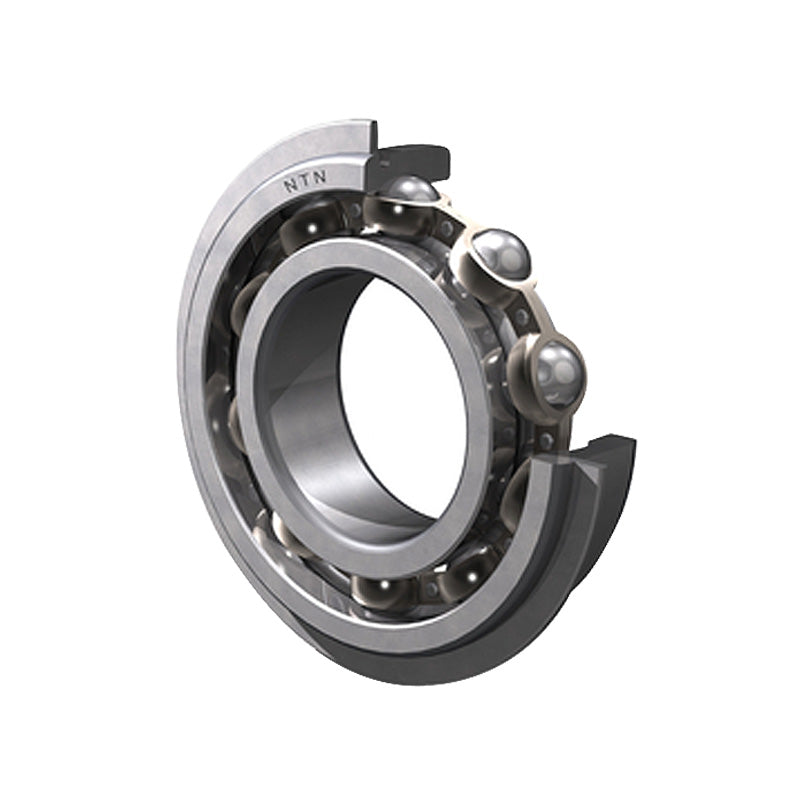

NTN 6310ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 50x110x27mm - Allow 2-3 Days

NTN 6310ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 50x110x27mm - Allow 2-3 Days
Regular price $125.12 ex VAT
Regular price Sale price $125.12 ex VAT
Sale Sold out

Allow 2-3 Days


In stock

Price Break
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 110mm
B 27mm
r<sub>s</sub> min 2mm
rNS Min. 0.5
--- Loads angles and speeds
C<sub>r</sub> 68.5 Kn
C<sub>or</sub> 38.5 kN
C<sub>u</sub> 2.99 kN
f<sub>0</sub> 13.2 kN
Grease 6400 rpm
Oil 7500 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 106.81
a Max. 3.28
b Min. 2.7
r<sub>o</sub> Max. 0.6
D<sub>2</sub> Max. 116.6
f Max. 2.46
--- Fitting Dimensions
d<sub>a</sub> Min. 59mm
d<sub>a</sub> Max. 68.5mm
D<sub>a</sub> Max. 101mm
D<sub>X</sub> (approx) 118
C<sub>Y</sub> Max. 5.4
C<sub>Z</sub> Min. 2.5
r<sub>as</sub> Max. 2mm
r<sub>Nas</sub> Max. 0.5
Weight 1.07 kg
