SKU: 6310-2Z/VA201-SKF

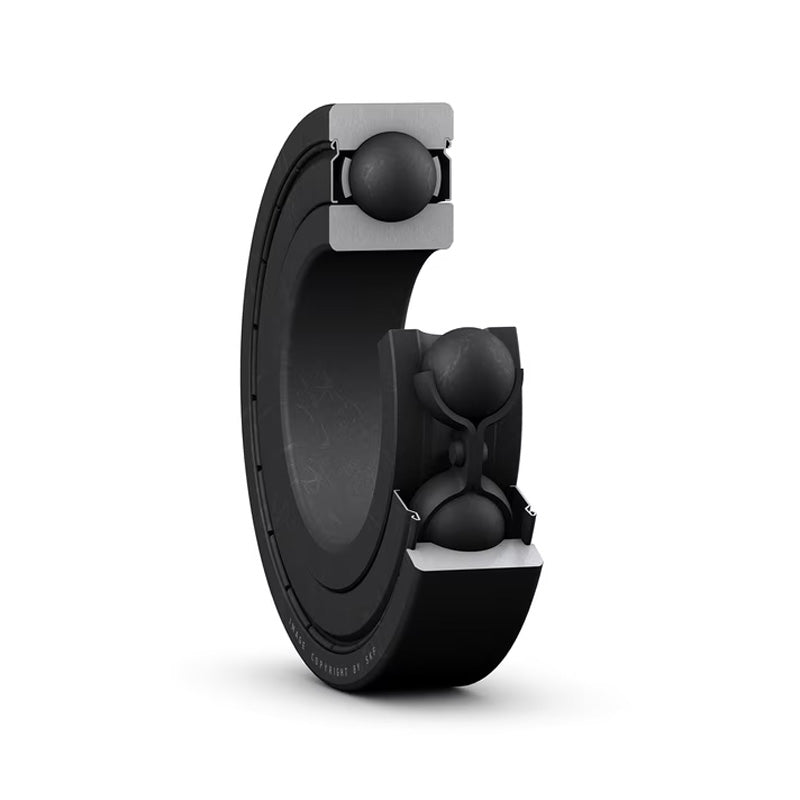

SKF 63102ZVA201 Single Row Deep Groove Ball Bearing High Temperature Type 50x110x27mm
SKF 63102ZVA201 Single Row Deep Groove Ball Bearing High Temperature Type 50x110x27mm
Regular price
$247.01
ex VAT
Regular price
Sale price
$247.01
ex VAT
In stock
Price Break
10+
$219.84
19+
$207.49
29+
$205.02
39+
$202.55
49+
$200.08
74+
$197.61
99+
$185.26
199+
$182.79
249+
$180.32
499+
$177.85
999+
$172.91
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| d1 | 68.7mm |
| D2 | 95.2mm |
| r1r2 | 2mm |
| Basic load rating Co | 38 kN |
| Weight | 1.05 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
