SKU: 6310-2RSR/C3-FAG

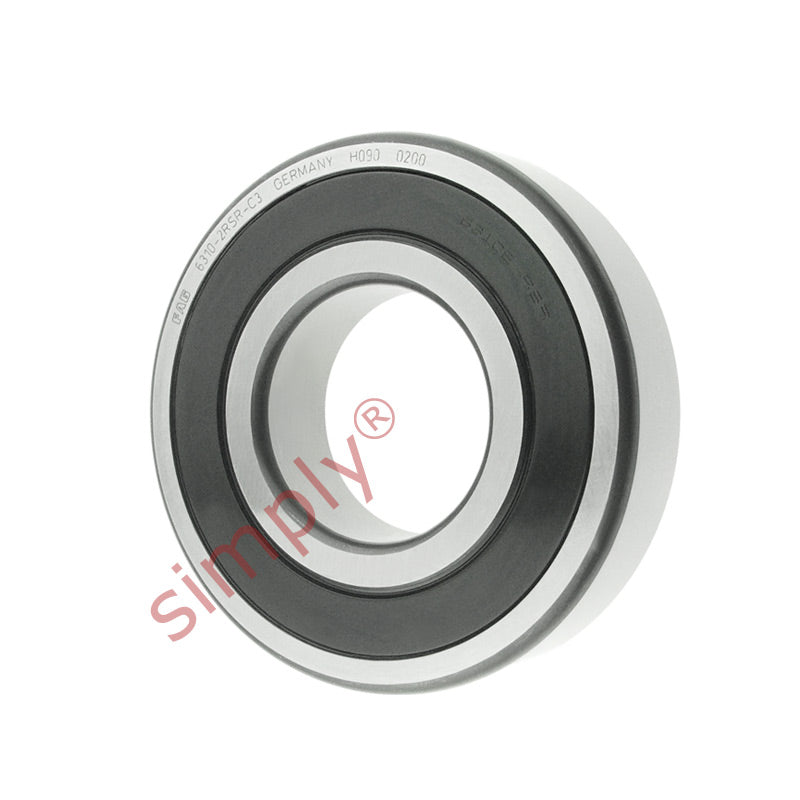

FAG 63102RSRC3 Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
FAG 63102RSRC3 Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
Regular price
$50.58
ex VAT
Regular price
Sale price
$50.58
ex VAT
Equivalent to: 6310NSEC3 6310DUC3 6310RSC3 6310RSHC3 6310PC3 6310RSRC3 6310LUC3 63102NSEC3 6310DDUC3 63102RSC3 63102RS1C3 63102RSHC3 6310PPC3 6310LLU
In stock
Price Break
10+
$23.89
19+
$22.55
29+
$22.28
39+
$22.01
49+
$21.74
74+
$21.47
99+
$20.13
199+
$19.86
249+
$19.59
499+
$19.32
999+
$18.79
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6310NSEC3 6310DUC3 6310RSC3 6310RSHC3 6310PC3 6310RSRC3 6310LUC3 63102NSEC3 6310DDUC3 63102RSC3 63102RS1C3 63102RSHC3 6310PPC3 6310LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 4300 rpm |
| Mass | 1.05 kg |
| d1 | 68.8mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61 |
