SKU: 6309-ZZE/C3-NACHI

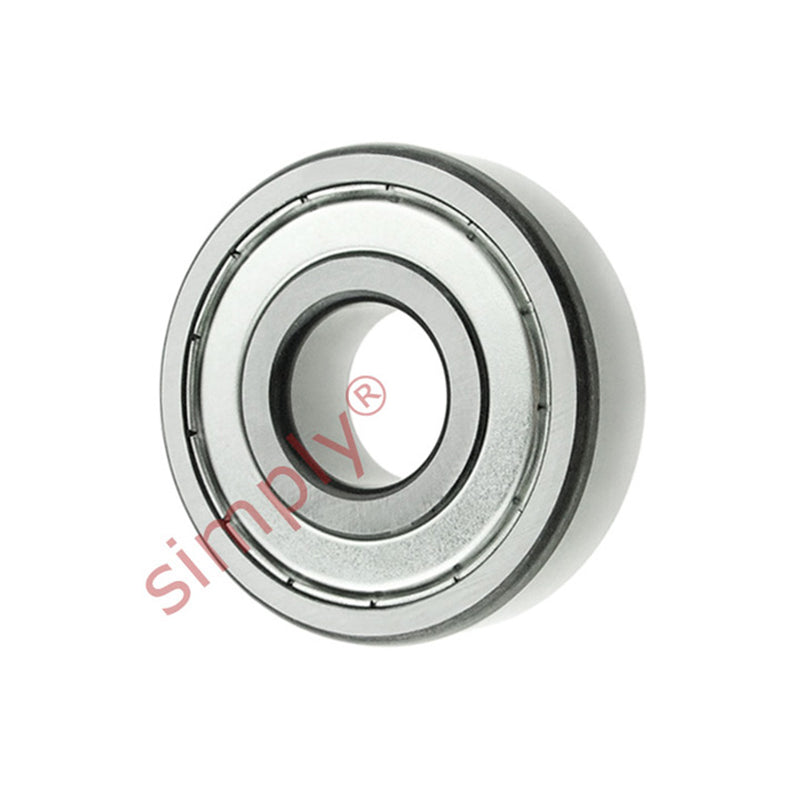

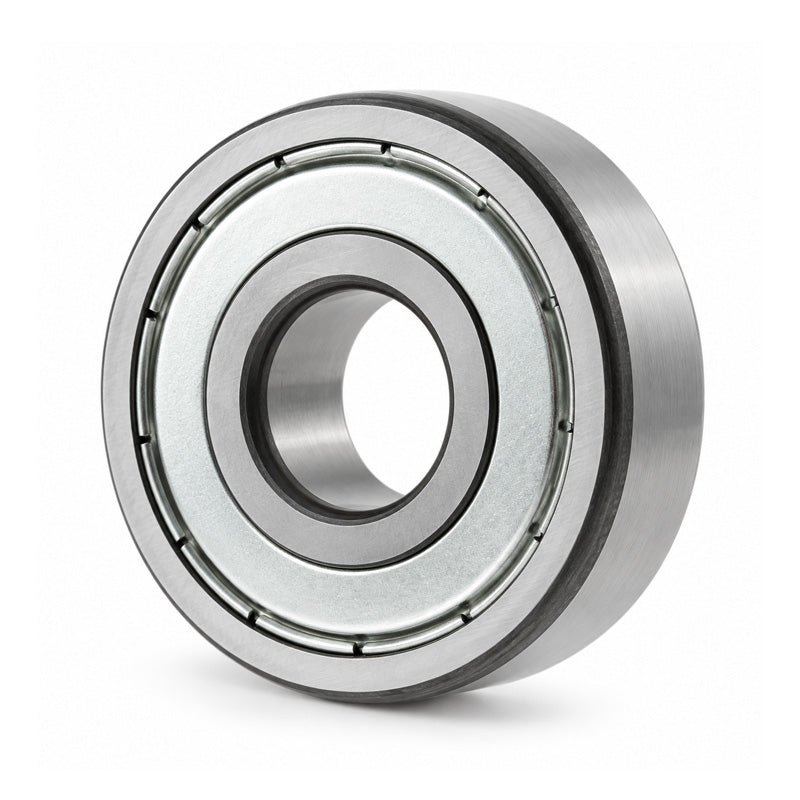

NACHI 6309ZZEC3 Metal Shielded Deep Groove Ball Bearing 45x100x25mm
NACHI 6309ZZEC3 Metal Shielded Deep Groove Ball Bearing 45x100x25mm
Regular price
$35.84
ex VAT
Regular price
Sale price
$35.84
ex VAT
Equivalent to: 6309ZZC3 63092ZC3 6309.2ZC3 6309KDDC3 6309DDC3 63092ZRC3 6309FFC3
In stock
Price Break
5+
$16.93
9+
$15.98
19+
$15.79
29+
$15.60
49+
$15.41
74+
$15.22
99+
$14.27
199+
$14.07
249+
$13.88
499+
$13.69
999+
$13.31
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6309ZZC3 63092ZC3 6309.2ZC3 6309KDDC3 6309DDC3 63092ZRC3 6309FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 25mm |
| Min radius r | 1.5mm |
| Dynamic load | 53000 kN |
| Static load | 32000 kN |
| Max speed | 7000 rpm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Weight | 0.833 kg |
