SKU: 6309/VA201-SKF

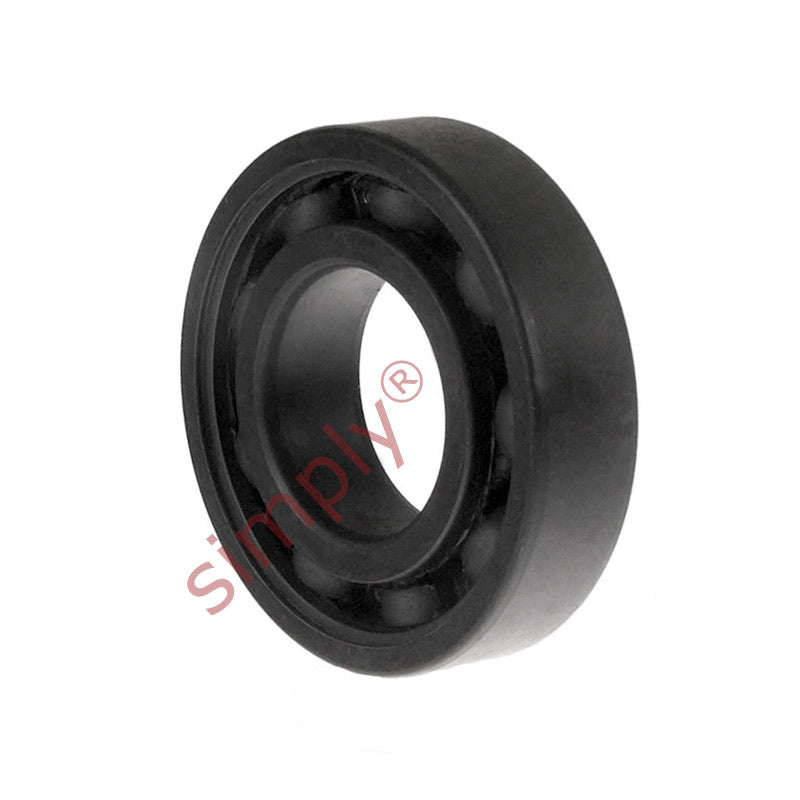

SKF 6309VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x100x25mm
SKF 6309VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x100x25mm
Regular price
$145.50
ex VAT
Regular price
Sale price
$145.50
ex VAT
In stock
Price Break
10+
$129.50
19+
$122.22
29+
$120.77
39+
$119.31
49+
$117.86
74+
$116.40
99+
$109.13
199+
$107.67
249+
$106.22
499+
$104.76
999+
$101.85
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| d1 | 62.1mm |
| D2 | 86.7mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 31.5 kN |
| Weight | 0.83 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
