SKU: 6309-2RS/C3-KOY

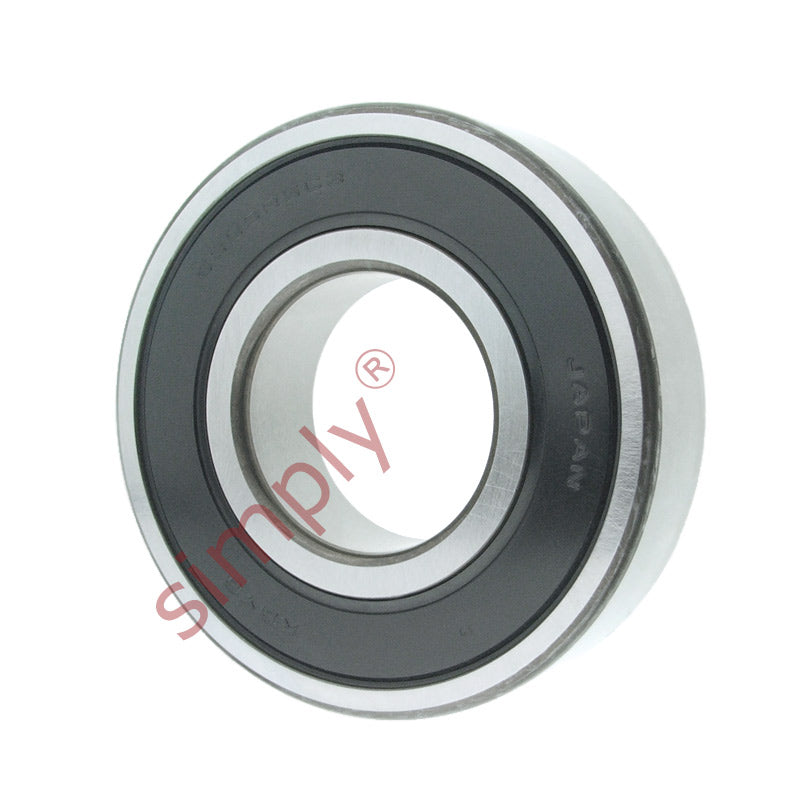

KOYO 63092RSC3 Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
KOYO 63092RSC3 Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Regular price
$49.32
ex VAT
Regular price
Sale price
$49.32
ex VAT
Equivalent to: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 63092NSEC3 6309DDUC3 63092RS1C3 63092RSHC3 6309PPC3 63092RSRC3 6309LLU
In stock
Price Break
5+
$23.29
9+
$21.98
19+
$21.72
29+
$21.46
49+
$21.20
74+
$20.94
99+
$19.63
199+
$19.37
249+
$19.10
499+
$18.84
999+
$18.32
Description
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 63092NSEC3 6309DDUC3 63092RS1C3 63092RSHC3 6309PPC3 63092RSRC3 6309LLU
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 25mm |
| Min radius r | 1.5mm |
| Dynamic load | 48.9 kN |
| Static load | 29.5 kN |
| Max speed in oil | 8100 rpm |
| Max speed in grease | 4500 rpm |
